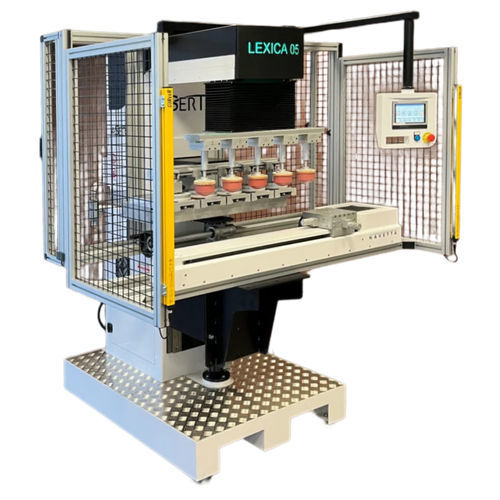

8-color pad printing machine LEXICA 05

with hermetic ink cup4-color5-color

state-of-the-art pad printing machine, designed to raise the standards of quality and efficiency in various industrial applications. It is ideal for those looking for high print quality. Main characteristics: • Print up to 8 colors for applications requiring maximum quality • Brushless motors for superior precision and high printing force • High level performance for efficient production • Advanced connectivity for easy integration into your workflow Technical Specifications • Available with 2 types of setup for positioning the glasses: Trays or Cliché Plate • Max number of colours: 8 • It can fit both circular and oval glasses. • Max print diameter: Ø 155 mm • Max glasses size: Ø 160 (circular) – 225 x 115 mm (oval) • Max cliché size: 175×350 mm • Doctor stroke: 215 mm • Horizontal stroke: 315 mm • Vertical travel: 190 mm • Max pad height: 250 mm to 300 mm • Drive: Electronic • Power supply: 230V 50-60 Hz • Weight: 800 kg • Average energy consumption: 3.9 kWh • Different sized guards available based on the machine configuration • layout with protections for 800 stroke linear index configuration Standard Color Setup Configuration • 4 colors Ø 160 • 5 colors Ø 135 • 8 colors Ø 90
