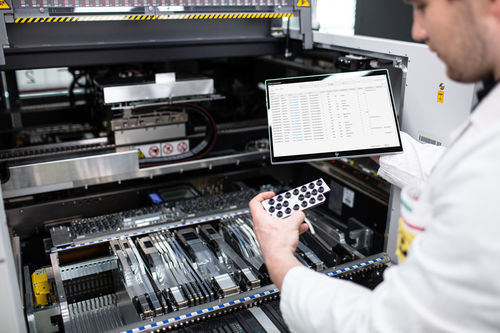

Plant management system

for industrial applicationsdigital asset

Overview
Data-driven control of placement nozzles in SMT manufacturing. Placement nozzles are the only physical interface with components, so their condition directly impacts process stability and assembly quality. Conventional interval-based maintenance or isolated data collection often lack continuous visibility into individual nozzle condition, causing deviations to be detected only after production is affected.

Closed-Loop Nozzle Management concept
Closed-Loop Nozzle Management provides continuous identification, tracking and control of placement nozzles across their lifecycle. The closed loop connects identification, data capture, maintenance/cleaning and centralized control so that nozzle usage in production can be managed in a traceable, condition-based manner.

Key steps / functional elements

• Unique identification and lifecycle record: every nozzle is uniquely identified and assigned an individual data record to track usage and events.
• Continuous condition and process data capture: relevant usage and condition metrics are recorded during placement operations to assess nozzle health.
• Centralized data analysis and control: captured data is consolidated and evaluated in a central system (Factory Equipment Center) to derive usage policies.
• Condition-based cleaning and maintenance: nozzles flagged by condition data are removed, inspected, cleaned and verified before re-release to production.
• System-wide release/blocking: the system decides which nozzles are released for production or blocked based on analyzed quality thresholds.

How it is implemented

• Identification: assign a unique ID and maintain a lifecycle data record for each nozzle.
• Data capture: capture usage, vacuum/handling events and process parameters in real time during placement.
• Central analysis: consolidate nozzle data in the Factory Equipment Center for trend analysis and rule-based decisions.
• Maintenance loop: execute condition-based removal, inspection, cleaning and verification workflows.
• Control loop: apply centralized rules to release or block individual nozzles for production.

Benefits / Outcomes

• Reduced unplanned downtime by detecting nozzle-condition deviations early and removing faulty nozzles.
• Consistent placement quality by ensuring only verified nozzles are used.
• Optimized maintenance and replacement planning based on condition and usage data.
• Traceability and system-wide availability of condition and process data for targeted process control.
• Higher throughput and lower costs through fewer quality escapes and extended nozzle lifecycle efficiency.

Technical characteristics / specifications

• Continuous nozzle-level identification and lifecycle data recording.
• Real-time capture of usage, condition and process parameters during placement.
• Centralized consolidation and analysis of nozzle data in the Factory Equipment Center for rule-based control.
• Condition-driven cleaning and maintenance workflows.
• System-wide release/blocking mechanism for individual nozzles based on analyzed data and defined thresholds.
• Designed to improve process stability, placement quality and enable condition-based maintenance planning.
