Batch reactor DrySyn®

laboratorysynthesisheating

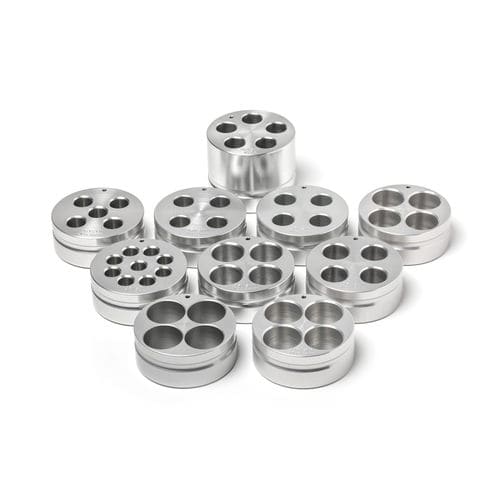

DrySyn® Reaction Vial inserts can be used for up to 27 parallel heated or cooled reactions. Available in a wide range of sizes from stock, we can also custom make these to suit your specific needs. The inserts are also made with a variety of positions depending on size, and offer great versatility. With several new additions to the range available as standard including 11.80 mm inserts for 2 mL HPLC sample vials, 27.40 mm inserts which will fit 20 mL Scintillation vials, and tapered 17.20 mm inserts which will fit Biotage tapered 0.5-2 mL microwave vials. See the “Specification” tab for the full list of stock sizes. All DrySyn® is engineered and manufactured in the UK. Technical Specifications Standard sizes, each 4 position except 11.80 mm / 15.00 mm / 17.20 mm Tapered options: 11.80 mm (will fit 2 mL HPLC sample vials) this size is a 9 position 15.00 mm (will fit 1 dram vials) this size is 5 position 16.20 mm (will fit CEM microwave tubes) Tapered 17.20 mm (will fit Biotage tapered 0.5-2 mL microwave vials) 17.40 mm (will fit Biotage 2-5 mL microwave tubes and 2 dram vials) 20.20 mm (will fit robot tubes) 24.40 mm (will fit Radleys tubes) 25.75 mm (will fit Wheaton reactor vials) 27.65 mm (will fit 20 mL Scintillation vials) 28.20 mm (will fit large Biotage tubes)
