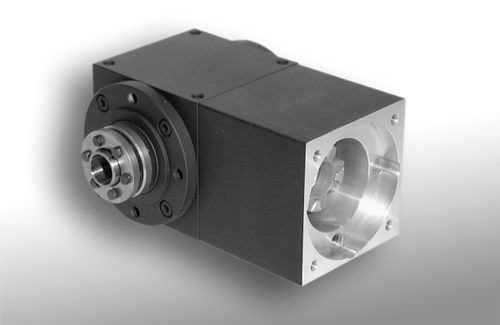

Bevel gear reducer VC series
right angle200 - 500 Nm20 - 50 Nm

bevel gear reducer
bevel gear reducer
Add to favorites
Compare this product


Characteristics

Type
bevel
Shaft orientation
right angle
Torque
200 - 500 Nm, 20 - 50 Nm, 100 - 200 Nm, 50 - 100 Nm
Performance
high-rigidity
Applications
transmission
Rotational speed

2,400 rpm, 3,000 rpm
(15,079.64 rad.min-1, 18,849.56 rad.min-1)

Description

The VC series is manufactured by Atek, and is an ad-servo gearbox that is highly appropriate for installation on servo motors. It has a drive end with square and clamping coupling, which has a simultaneous operating shaft in sluggish running. It also has a transmission ratios ranges from 1:1 to 6:1 with acceleration torques of up to 700 Nm. There is a low circumferential backlash in lofty torsional hardness, which has 6 gear unit sizes from 0.65 to 200 mm edge diameter.
