- Relative pressure sensor
- ATEK SENSOR TECHNOLOGIE

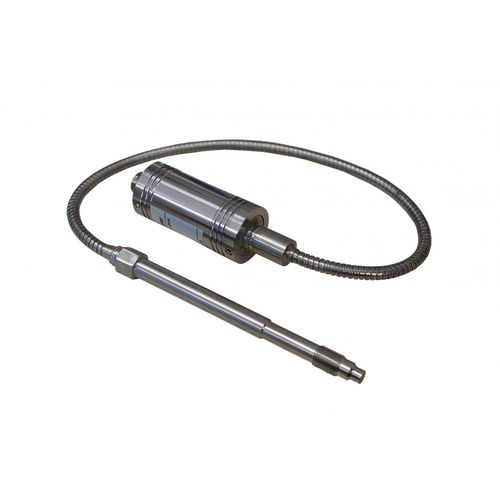

Relative pressure sensor MPTS 123membrane4-20 mA0-10 V
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- membrane
- Output
- 4-20 mA, 0-10 V
- Material
- plastic, titanium
- Applications
- process, melt
- Other characteristics
- precision
- Pressure range
Max.: 2,000 bar
(29,007.55 psi)Min.: 0 bar
(0 psi)- Precision
0.5 %
- Process temperature
400 °C
(752 °F)
Description
Flexible body system
Applications with process temperature of up to 400℃
Pressure and temperature measurement of hot fluids; Precise and durable measurement with mercury; titanium nitride coated flexible body
General Features
Internal 80% shunt calibration
Standard Inconel diaphragm
Optional auto-zero function
Applications with process temperature of up to 400℃
Maximum Torque:30Nm (22lbf ft)
Optional safe relay function
Applications
MPTS series melt pressure sensors are used to measure the pressure and temperature of hot fluids in the plastics, rubber, food, etc. sectors.
Catalogs
No catalogs are available for this product.
See all of ATEK SENSOR TECHNOLOGIE‘s catalogsOther ATEK SENSOR TECHNOLOGIE products
