Simulator for aeronautical applications ePlane PC

for aircraftoperator trainingfor pitot testing

Overview

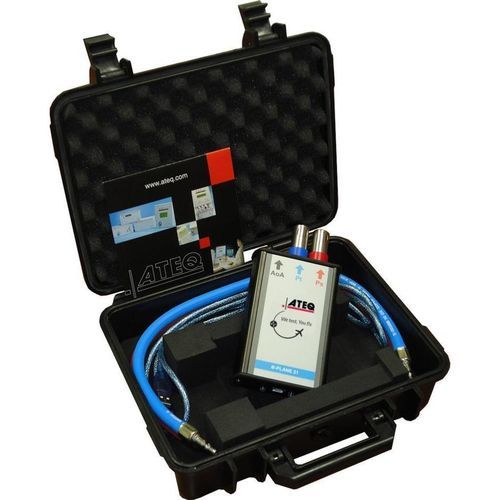

The ePlane is a complete high-performance multi-pressure simulator for Ps, Pt and AoA. It is used for pitot-static tester demonstrations and training without any risk to onboard equipment. The ePlane consists of an aluminium casing, a cable and three pneumatic plugs (Ps, Pt and AoA).

Simulators included

• Altimeter simulator
• Airspeed indicator simulator
• Vertical speed indicator simulator
• AoA simulator for specific probes

General Details
Temperature range: Operating 10° to 40°C (50° to 104°F)
Power supply: USB
Case: Robust aluminium; EMC requirements
Physical: 126 x 107 x 57 mm (5 x 4.2 x 2.2 inch) – 300 g (0.66 lbs)
Software: Windows PC
Selectable units: hPa; inHg; mmHg; ft; m; kts; km/h; ft/min; Mach number

General Specifications
Function | Range | Accuracy (1)
Static sensor | 72 to 1,100 hPa | 1.5% FS
Pitot sensor | 72 to 2,500 hPa | 1% FS
AoA sensor | 72 to 1,500 hPa | 1% FS

Measurement specifications in standard conditions
(1) Linearity + repeatability + hysteresis at ambient +10° to +40°C

Technical specifications

• Product name: ePlane PC
• Purpose: Multi-pressure simulator for Ps, Pt and AoA used for pitot-static tester demonstrations and training
• Main components: aluminium casing, cable and three pneumatic plugs (Ps, Pt and AoA)
• Temperature operating range: 10° to 40°C (50° to 104°F)
• Power supply: USB
• Case: Robust aluminium, meets EMC requirements
• Dimensions: 126 x 107 x 57 mm (5 x 4.2 x 2.2 inch)
• Weight: 300 g (0.66 lbs)
• Software: Windows PC
• Selectable units: hPa; inHg; mmHg; ft; m; kts; km/h; ft/min; Mach number
• Static sensor range/accuracy: 72 to 1,100 hPa — 1.5% FS
• Pitot sensor range/accuracy: 72 to 2,500 hPa — 1% FS
• AoA sensor range/accuracy: 72 to 1,500 hPa — 1% FS
• Measurement note: linearity + repeatability + hysteresis at ambient +10° to +40°C
