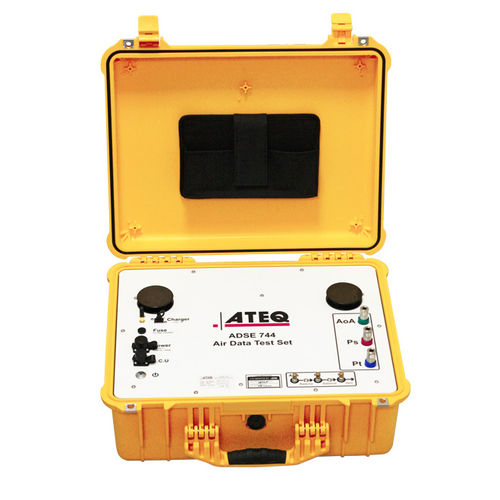

Pitot test stand ADSE 744

hangar and tarmacfor materialsmechanical

Pitot-Static tester / AoA tester AoA testing has never been so easy The ADSE 744 is the newest of our broad range of pitot and static testers. This Air Data Test Set was specifically designed for the new-generation pitot tubes that integrate sensing probes, pressure sensors and powerful air data computer processing to provide all critical air data parameters including pitot and static pressure, airspeed, altitude, and angle of attack. This pitot static tester is designed primarily for flight line use to cover the testing of all barometric and manometric pressure instrument systems. The AoA (Angle of Attack) channel behaves as a second Ps channel, in order to create a differential pressure between the 2 Ps channel, allowing it to perform simulations of different angles of attack. The large touch screen display, with on-screen help, enables all checks to be carried out easily on the flight deck or in the cockpit, by a single operator. The ADSE 744 is robust and housed in a mobile weatherproof case. An attached bag contains the pressure hoses and electrical cables. FEATURES • Built-in pressure and vacuum pumps • Remote control unit based on Windows • Complete self check enable • High accuracy, high resolution • RVSM compliant • Programmable leak test • Programmable flight envelope to protect • equipment under test • Most important flight values displayed • simultaneously • Programmable (password write protected) • test schedules • Select pressure units: hPa; psi; inHg; mmHg; • ft; m; kts; km/h; Mach number Diverse applications The ADSE 744 is designed to perform Pitot and Static port tests on all aircraft types, including civil, military,
