Performance tester ADSE 740

pressureairfor aeronautical applications

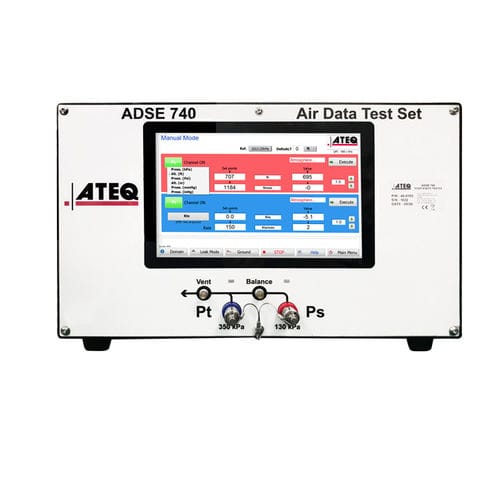

The Pitot-Static tester for laboratories and workshops The ADSE 740 is a complete high performance dual pressure Ps and Pt standalone test bench specially designed to be used in the workshop or in the laboratory to test and calibrate all air data equipment such as altimeters, vertical speed indicators, air speed indicators, MACH-meter, air data computers …) and sensors. The high precision embedded sensors enable the ADSE 740 to be used as a pressure standard. The user interface is programmed using Windows® and Labview®, with the data base managed using a spreadsheet for easy evaluation, management, statistics and presentation. • Complete self check enable • High accuracy, high resolution • RVSM compliant • Programmable leak test • Programmable flight envelope to protect • equipment under test • Most important flight values dispalyed • simultaneously • Programmable (password write protected) • test schedules • Select pressure units: hPa; psi ; inHg ; mmHg ; ft • m ; kts ; km/h ; Mach number • SCPI Command interface (RS232 by default) • Computer connections: HDMI, USB port • Ethernet Designed for laboratory use The ADSE 740 Pitot Static Tester is a high precision Pitot/Static Air Data Test Set for workshops and laboratories. It is designed to control and calibrate altimeters, rate of climb indicators, airspeed indicators, and air data computers. It is delivered in a 19″ 6U rack-mounted enclosure and includes the control computer, measurement systems and test security features. This guarantees you a complete Pitot Static test solution for all your needs.
