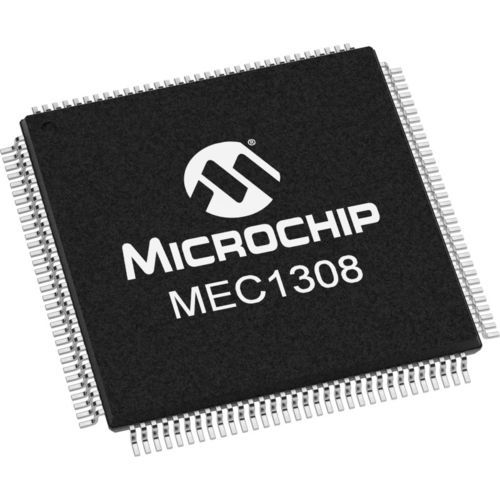

Analog microchip MEC1308

MEC1308 is a Notebook I/O Controller which incorporates a high-performance 8051-based keyboard system controller with 64K byte RAM, 1 Kbyte Boot Rom, and 16-bytes battery packed registers. The 64K RAM is loaded via HOST/8051 SPI Memory Interface, which can be configured in Switched SPI Flash Configuration or Parallel Shared Serial Peripheral Interface (SPI) Flash Configuration. It has four PS/2 ports; a 16C550A-compatible 2-pin UART for Debug Port; a Consumer Infrared Receiver for Vista, two 8584-style I2C/SMBus controllers with two selectable ports per controller; and a Serial IRQ peripheral agent interface. MEC1308 has two separate power planes to provide “instant on” and system power management functions. Additionally, the MEC1308 incorporates sophisticated power control circuitry (PCC). Family parts MEC1308-NU MEC1308-NU-TR Product Features 8051 system controller 32-bit ARM system controller 132 DQFN package External SPI flash 64KB RAM 18x8 keyboard scan matrix 7 additional General Purpose Output Pins 4 SMBus ports 4 analog to digital converter channels 4 LED 2 low-power timers
