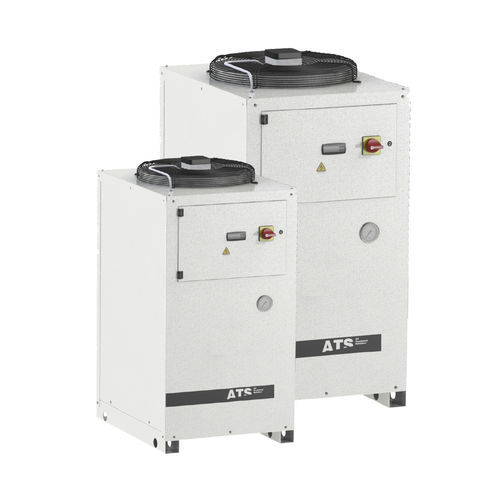

Liquid chiller CGO gold series
industrialscroll compressorreciprocating compressor

liquid chiller
liquid chiller
Add to favorites
Compare this product


Characteristics

Material
liquid
Applications
industrial
Other characteristics
scroll compressor, reciprocating compressor
Power

Min.: 3.7 kW

Max.: 13 kW

Flow rate

Min.: 16 l/min
(4.227 us gal/min)

Max.: 50 l/min
(13.209 us gal/min)

Description

• Vertical structure • Two removable panel for easy maintenance • Zinc-plated steel base, polyester powder RAL9005 orange peel finished • Panels zinc-plated steel, polyester powder RAL7035 orange peel finished • Base with mounting hole for wheels kit • Arranged for lifting with lift truck Refrigerant Circuit Single circuit air condensed • Hermetic reciprocating compressor mod. 37 • Hermetic scroll compressor mod. 58 - 130 • Ecological refrigerant gas R134A mod. 37 • Ecological refrigerant gas R407C mod. 58 - 130 • Condenser with aluminium fins • Evaporator : stainless steel plate • Thermostatic Expansion valve Hydraulic circuit • Standard equipment without pump and tank • Oil with max viscosity ISO VG 68, clean and filtered, without debris • Gear pump on request • Adjustable by-pass with manometer (versions with pump) Electrical Circuit • Electrical panel for indoor installations • Control panel with general switch and alarms diagnosis • Electronic thermostat with temperature precision +/-2K • Power supply and signals on terminals • Standard signals: general alarm, on-off remote control • Signals on request: electrical level, flow switch • Antifreeze protection

Catalogs

No catalogs are available for this product.

See all of ATS‘s catalogs
