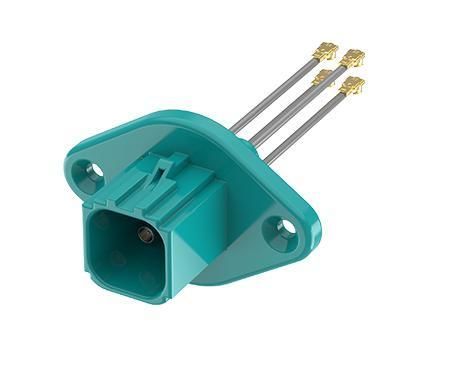

Interface cable assembly FR-1P4P-010Z01W

RFmini FAKRAwaterproof

Product Summary
ATTEND Mini FAKRA waterproof connectors and cable assemblies deliver an ultra-compact RF interconnect solution for space-constrained applications. Offering a reduced footprint compared with standard FAKRA, they enable high-density layouts while preserving mechanical integrity and RF performance. When properly mated the interface achieves IP67 protection and meets ISO 20860-1/2, SAE/USCAR-2 and USCAR-17 requirements. Frequency support reaches up to 9 GHz, with excellent resistance to water, dust and vibration—suited to automotive cameras, ADAS, GPS, radar and other mobile or outdoor systems.

Main Features

• Frequency range: up to 9 GHz
• Compliant with ISO 20860-1/2, SAE/USCAR-2 and USCAR-17
• Durable plastic housings for harsh automotive environments
• IP67 protection when properly mated for reliable sealing against water and dust
• Mini FAKRA size reduction (up to 80% smaller than standard FAKRA) for compact, high-density electronics
• Customizable mini FAKRA cable assemblies to meet specific application requirements
• Operating temperature range: −40°C to +105°C

Applications

• Automotive telematics and infotainment systems
• Advanced Driver Assistance Systems (ADAS)
• GPS, satellite radio and antenna connections
• Industrial wireless communication networks
• IIoT devices in harsh environments
• V2X communication systems
• Industrial automation
• Unmanned transport systems (AGVs/AMRs)
• Intelligent transportation systems
• Agricultural machinery

Specification Tables
MECHANICAL
Style: Mini FAKRA to MHF
1st Connector: Mini FAKRA Type B (2x2)
1st Contact Gender: Male
2nd Connector: MHF
2nd Contact Gender: Male
Cable Color: Grey

MECHANICAL
Cable OD: 1.37 mm
Cable Type: Micro coaxial
Compliance: RoHS
Length: 10 cm
Mating Cycles: ≥ 25

ELECTRICAL
Coding: Mini FAKRA Type B Z Code
Frequency Range: DC to 9 GHz
Impedance: 50 Ω

ENVIRONMENTAL
Operating Temperature Range: -40°C to +105°C

Technical specifications

• Style: Mini FAKRA to MHF
• 1st Connector: Mini FAKRA Type B (2x2)
• 1st Contact Gender: Male
• 2nd Connector: MHF
• 2nd Contact Gender: Male
• Cable Color: Grey
• Cable OD: 1.37 mm
• Cable Type: Micro coaxial
• Compliance: RoHS
• Length: 10 cm
• Mating Cycles: ≥ 25
• Coding: Mini FAKRA Type B Z Code
• Frequency Range: DC to 9 GHz
• Impedance: 50 Ω
• Operating Temperature Range: -40°C to +105°C
