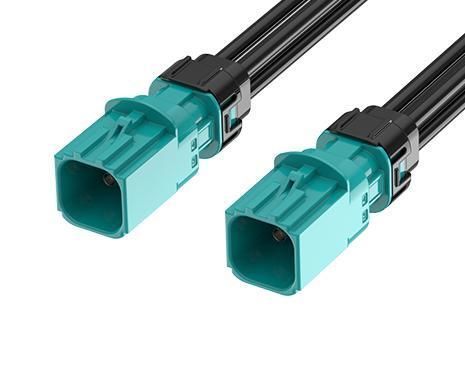

Mini FAKRA cable assembly Mini FAKRA B Plug

RFwaterproof

Product summary
ATTEND Mini FAKRA waterproof connectors and cable assemblies provide ultra-compact solutions for space-constrained applications. With a reduced footprint versus standard FAKRA, they enable high-density layouts while maintaining reliable mechanical and RF performance. Rated IP67 when properly mated and compliant with ISO 20860-1/2, SAE/USCAR-2 and USCAR-17, the assemblies support DC to 9 GHz and offer robust resistance to water, dust and vibration — suitable for automotive cameras, ADAS, GPS, radar and other outdoor or mobile systems.

Main features

• Frequency range: up to 9 GHz
• Standards: ISO 20860-1/2, SAE/USCAR-2, USCAR-17, RoHS
• Compact plastic housings for harsh automotive environments
• IP67 protection when properly mated
• Mini FAKRA footprint up to 80% smaller than standard FAKRA for high-density electronics
• Customizable cable assemblies to meet application-specific requirements
• Operating temperature: -40°C to +105°C

Applications

• Automotive telematics and infotainment
• Advanced Driver Assistance Systems (ADAS)
• GPS, satellite radio and antenna connections
• Industrial wireless networks and IIoT devices in harsh environments
• V2X communication systems
• Industrial automation and unmanned transport (AGV/AMR)
• Agricultural machinery and outdoor equipment

Specifications — MECHANICAL
Style: Mini FAKRA to Mini FAKRA
1st Connector: Mini FAKRA Type B (2x2)
1st Contact Gender: Male
2nd Connector: Mini FAKRA Type B (2x2)
2nd Contact Gender: Male
Cable Color: Black

Specifications — MECHANICAL (additional)
Cable OD: 3.3 mm
Cable Type: RTK031
Commercial model reference: FR-1P1P-100Z02W
Length: 100 cm
Mating cycles: ≥ 25
Compliance: SAE/USCAR-2, RoHS

Specifications — ELECTRICAL
Coding: Mini FAKRA Type B, Z code
Frequency range: DC to 9 GHz
Impedance: 50 Ω

Specifications — ENVIRONMENTAL
Operating temperature range: -40°C to +105°C

Technical specifications

• Product family: Mini FAKRA waterproof connector and cable assembly
• Connector configuration: B Plug 2x2 to B Plug 2x2
• Cable outer diameter: 3.3 mm
• Cable length: 100 cm
• Ingress protection: IP67 when properly mated
• Frequency support: DC to 9 GHz
• Characteristic impedance: 50 Ω
• Operating temperature: -40°C to +105°C
• Standards: ISO 20860-1/2, SAE/USCAR-2, USCAR-17, RoHS
• Mating durability: ≥ 25 cycles
