Mini FAKRA cable assembly FR-1J1J-100Z04W

coaxialRFwaterproof

Summary

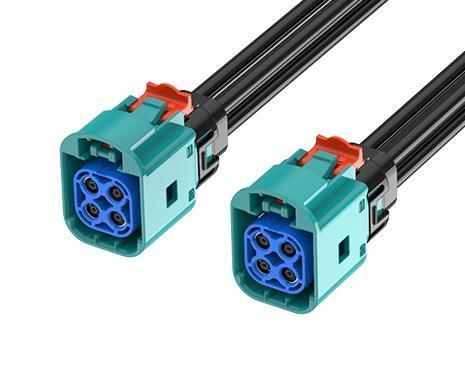

Mini FAKRA Type B (Jack) 2x2 cable assembly FR-1J1J-100Z04W. Ultra-compact waterproof coaxial interconnect rated IP67 when properly mated. Designed for space-constrained automotive and industrial RF applications requiring DC–9 GHz frequency support and compliance with ISO 20860-1/2, SAE/USCAR-2 and USCAR-17.

Main Features

• Frequency range: up to 9 GHz
• Compliant with ISO 20860-1/2, SAE/USCAR-2 and USCAR-17
• Compact plastic housings for high resistance in automotive environments
• IP67 protection when properly mated for water and dust sealing
• Mini FAKRA size reduction (up to 80% smaller than standard FAKRA) for high-density layouts
• Customizable cable assemblies to meet application-specific requirements
• Operating temperature range: -40°C to +105°C

Applications

• Automotive telematics and infotainment systems
• Advanced Driver Assistance Systems (ADAS)
• GPS, satellite radio and antenna connections
• V2X and vehicle communication systems
• Industrial wireless communication networks
• IIoT devices in harsh environments
• Unmanned transport systems (AGVs/AMRs)
• Intelligent transportation systems
• Agricultural machinery

Specification
MECHANICAL
Style: Mini FAKRA to Mini FAKRA
1st Connector: Mini FAKRA Type B (2x2)
1st Contact Gender: Female
2nd Connector: Mini FAKRA Type B (2x2)
2nd Contact Gender: Female
Cable Color: Black

MECHANICAL
Cable OD: 3.3 mm
Cable Type: RTK031
Compliance: SAE/USCAR-2, RoHS
Length: 100 cm
Mating Cycles: ≥ 25

ELECTRICAL
Coding: Mini FAKRA Type B Z Code
Frequency Range: DC to 9 GHz
Impedance: 50 Ω

ENVIRONMENTAL
Operating Temperature Range: -40°C to +105°C

Technical data

• Model / Part Number: FR-1J1J-100Z04W
• Commercial name: Mini FAKRA B Jack 2x2
• Style: Mini FAKRA to Mini FAKRA
• Connector type: Mini FAKRA Type B (2x2), both ends
• Contact gender: Female / Female
• Coding: Z Code (Mini FAKRA Type B)
• Cable OD: 3.3 mm
• Cable type: RTK031
• Length: 100 cm
• Cable color: Black
• Frequency range: DC to 9 GHz
• Impedance: 50 Ω
• IP rating: IP67 (when properly mated)
• Standards: ISO 20860-1/2, SAE/USCAR-2, USCAR-17, RoHS
• Operating temperature: -40°C to +105°C
• Mating cycles: ≥ 25
