Mini FAKRA cable assembly FR-1J4J-100Z01W

RFwaterproof

Product Overview

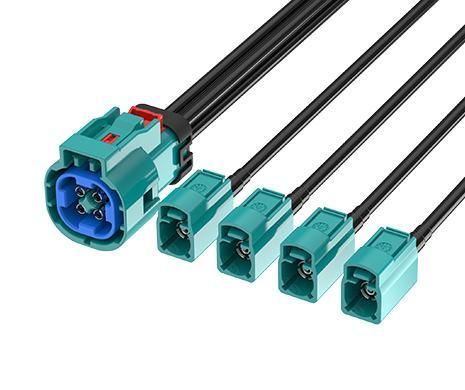

Mini FAKRA Type A (2x2) to FAKRA Jack x4 cable FR-1J4J-100Z01W, 100 cm. ATTEND Mini FAKRA waterproof connectors and assemblies deliver a space-saving solution for compact, high-density installations while preserving automotive-grade mechanical and RF performance. When mated correctly the assembly achieves IP67 and complies with ISO 20860-1/2, SAE/USCAR-2 and USCAR-17. The series supports frequencies up to 9 GHz; this cable is specified DC to 6 GHz.

Main Features

• Frequency range: DC to 6 GHz (series up to 9 GHz)
• Compliance: ISO 20860-1/2, SAE/USCAR-2, USCAR-17, RoHS
• Compact plastic housings for high-density automotive applications
• IP67 protection when properly mated for water and dust resistance
• Up to 80% smaller footprint than standard FAKRA connectors
• Customizable cable assemblies to meet application requirements
• Operating temperature: −40°C to +105°C

Applications

• Automotive telematics and infotainment
• Advanced Driver Assistance Systems (ADAS)
• GPS, satellite radio and antenna connections
• V2X communication systems
• Industrial wireless and IIoT devices in harsh environments
• Unmanned transport systems (AGVs/AMRs)
• Intelligent transportation systems and industrial automation
• Agricultural machinery

Specification - MECHANICAL
Style: Mini FAKRA to FAKRA
1st Connector: Mini FAKRA Type A (2x2)
1st Contact Gender: Female
2nd Connector: FAKRA (x4)
2nd Contact Gender: Female
Cable Color: Black

Specification - MECHANICAL (additional)
Cable OD: 3.3 mm
Cable Type: RTK031
Compliance: SAE/USCAR-2, RoHS
Length: 100 cm
Mating Cycles: ≥ 25

Specification - ELECTRICAL
Coding: Mini FAKRA Type A / FAKRA Z code
Frequency Range: DC to 6 GHz
Impedance: 50 Ω

Specification - ENVIRONMENTAL
Operating Temperature Range: -40°C to +105°C

caractéristiques / spécifications techniques

• Model: FR-1J4J-100Z01W
• Style: Mini FAKRA to FAKRA
• 1st Connector: Mini FAKRA Type A (2x2), female contact
• 2nd Connector: FAKRA, female contact (x4)
• Length: 100 cm
• Cable OD: 3.3 mm
• Cable Type: RTK031
• Frequency Range: DC to 6 GHz (series supports up to 9 GHz)
• Impedance: 50 Ω
• Protection Rating: IP67 (when properly mated)
• Operating Temperature: -40°C to +105°C
• Compliance: ISO 20860-1/2, SAE/USCAR-2, USCAR-17, RoHS
• Mating Cycles: ≥ 25
