RF cable assembly FR-1J1P-100Z05W

mini FAKRAwaterproof

Product Summary

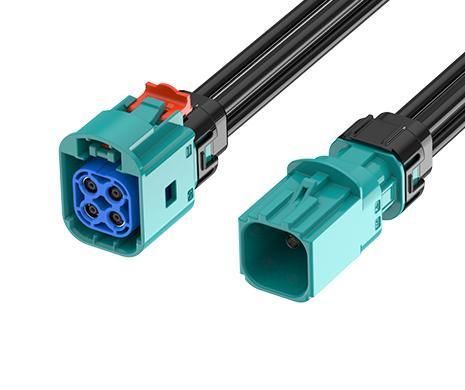

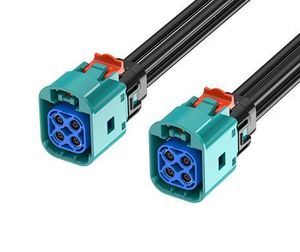

Mini FAKRA cable assembly: Mini FAKRA Type B jack (2x2) to plug (2x2), Z code. Length 100 cm, IP67 when mated. Part number: FR-1J1P-100Z05W.

Overview
ATTEND Mini FAKRA waterproof connectors and cable assemblies provide an ultra-compact solution for space-constrained applications. With a reduced footprint versus standard FAKRA, these assemblies support high-density layouts while maintaining robust mechanical and RF performance. Rated IP67 when properly mated and compliant with ISO 20860-1/2, SAE/USCAR-2 and USCAR-17, the series supports frequencies up to 9 GHz and resists water, dust and vibration—suitable for automotive cameras, ADAS, GPS, radar and outdoor/mobile systems.

Main Features

• Frequency range: DC to 9 GHz
• Meets ISO 20860-1/2, SAE/USCAR-2 and USCAR-17 standards
• Compact plastic housings for high-density installations
• IP67 protection when mated, ensuring reliable sealing against water and dust
• Up to 80% smaller footprint than standard FAKRA connectors
• Assemblies customizable to specific application requirements
• Operating temperature range: -40°C to +105°C

Applications

• Automotive telematics and infotainment systems
• Advanced Driver Assistance Systems (ADAS)
• GPS, satellite radio and antenna connections
• Industrial wireless communication networks
• IIoT devices in harsh environments
• V2X communication systems
• Industrial automation and control
• Unmanned transport systems (AGVs/AMRs)
• Agricultural machinery and outdoor equipment

Specification (MECHANICAL)
Style: Mini FAKRA to Mini FAKRA
1st Connector: Mini FAKRA Type B (2x2)
1st Contact Gender: Female
2nd Connector: Mini FAKRA Type B (2x2)
2nd Contact Gender: Male
Cable Color: Black

Specification (MECHANICAL)
Cable OD: 3.3 mm
Cable Type: RTK031
Compliance: SAE/USCAR-2, RoHS
Length: 100 cm
Mating Cycles: ≥ 25

Specification (ELECTRICAL)
Coding: Mini FAKRA Type B Z Code
Frequency Range: DC to 9 GHz
Impedance: 50 Ω

Specification (ENVIRONMENTAL)
Operating Temperature Range: -40°C to +105°C

Technical specifications

• Model / Type: Mini FAKRA B Jack 2x2 to Plug 2x2, Z code
• Part number: FR-1J1P-100Z05W
• Coding: Mini FAKRA Type B Z Code
• Style: Mini FAKRA to Mini FAKRA
• Connectors: Mini FAKRA Type B (2x2) — Female (1st) to Male (2nd)
• Cable: RTK031, OD 3.3 mm, color Black
• Length: 100 cm
• Electrical: 50 Ω impedance, DC to 9 GHz frequency range
• Environmental: IP67 (when mated), operating temperature -40°C to +105°C
• Compliance / Standards: ISO 20860-1/2, SAE/USCAR-2, USCAR-17, RoHS
• Mating cycles: ≥ 25
