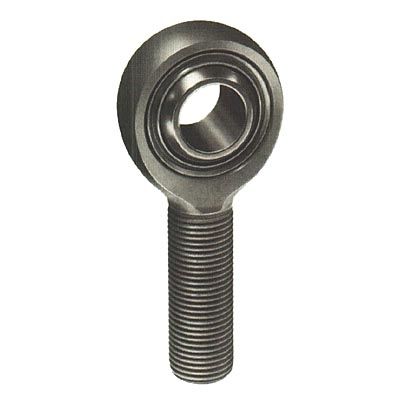

Body - 4340 alloy steel (AMS-S-5000), heat treated, cadmium plated.
Race - 17-4 PH stainless steel (AMS 5643), heat treated.
Ball - 440 C stainless steel (AMS 5630), heat treated, hard chrome plated.
Liner - AT3200 Bearing liner, permanently bonded to race inside diameter, qualified to SAE-AS81820.
Temperature range: -65°F to +325°F
No load rotational breakaway torque can be varied to meet specific application requirements.
Keyways are available. Units are supplied without keyways. When a keyway is required, specify by adding suffix "K". Ex.: ASMK-3T.
As applicable, keyways will conform to SAE-AS81935/3 or NAS 559.
All threads are rolled after heat treatment, and conform to UNJF-3A per AMS-S-8879.
Rod End Bearings listed are manufactured to conform to the dimensions, materials, and configurations of SAE-AS81935/1, and are approved for procurement under this specification.
