Floor jack

pneumatic20 tonsgarage

Overview

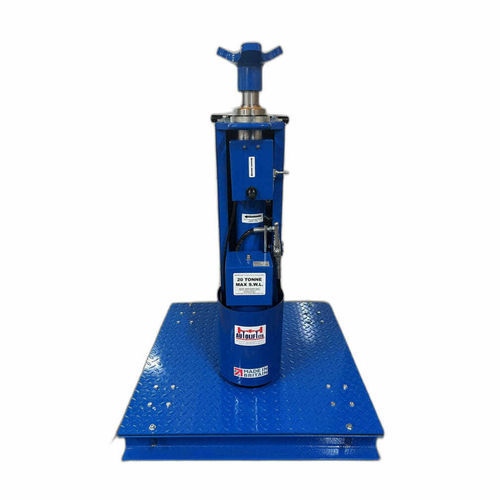

Manufactured in the UK, this heavy-duty air-operated floor pit jack provides a compact alternative to conventional jacking beams and is suitable for use under post/column lifts or on pit floors.

Key Features

• 20 tonne lifting capacity with 750 mm hydraulic stroke
• Operating height range: 1200 mm (min) to 2000 mm (max)
• Designed for pit-floor use; may also be used on garage floors under post or column lifts
• Triple safety system: safety lowering valve, anti-burst valve and ram lock-off handle (security struts optional)
• Fast-acting air pump and air-over-oil hydraulic design for improved performance and cylinder life
• Supplied with 1x Dish Head Pansy and 1x Vee Adapter
• Front and rear ergonomic handles and 4 castors for easy movement; castors retract on loads above 600 kg

Specifications
Wheels and base: Cylinder mounted in an 800 mm square sprung base on four castors; on loads above 600 kg the castors retract and the unit sits solidly on the floor.
Power pack: High-output hand pump with delivery valve, pre-set overpressure valve and dead-man release valve; single air valve controls advance (up) and retract (down). Air-over-oil hydraulic arrangement increases unloaded movement and responsiveness.
Rams: Double-acting hydraulic cylinder with chrome-plated rods and modern seal technology for extended service life. 750 mm stroke.
Warranty & compliance: 5-year warranty (T&Cs apply). Designed and manufactured in accordance with Machinery Directive 98/37/EC and BS EN 1494:2001; complies with LOLER. Each unit is tested, serial-numbered and supplied with a test certificate.

Accessories

• 13T fixed spreader beam (optional)
• 13T telescopic spreader beam (optional)
• 1.5T transmission tilt top (optional)

Technical data

• Lifting capacity: 20 tonne
• Lifting stroke: 750 mm
• Minimum height: 1200 mm
• Maximum height: 2000 mm
• Base: 800 mm square sprung base with 4 castors; castors retract above 600 kg
• Hydraulic design: Air-over-oil
• Pump: High-output hand pump with delivery valve, pre-set overpressure valve and dead-man release
• Control: Single air valve for advance (up) and retract (down)
• Safety: Safety lowering valve, anti-burst valve, ram lock-off handle; optional security struts
• Supplied fittings: 1x Dish Head Pansy, 1x Vee Adapter
• Handles: Front and rear ergonomic handles
• Rams: Double-acting hydraulic cylinder, chrome-plated rods, advanced seals
• Warranty & compliance: 5 year warranty (T&Cs apply); conforms to Machinery Directive 98/37/EC and BS EN 1494:2001; LOLER compliant; tested and supplied with serial number and test certificate
