Floor jack

hydro-pneumatic20 tonsgarage

Overview

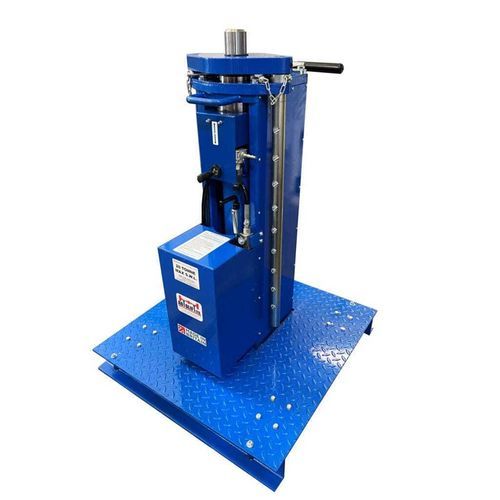

This UK-made heavy duty pit-floor jack offers an alternative to conventional jacking beams and can be used under post/column lifts. It uses an air-over-oil hydraulic system for improved performance and extended cylinder life and incorporates multiple safety layers including Security Struts.

Key features

• 20T capacity with 750 mm lifting stroke (minimum height 1200 mm, maximum height 2000 mm)
• Designed for use on the pit floor as an alternative to a conventional jacking beam
• Also compatible with garage floor post or column lifts
• Quadruple safety: safety lowering valve, anti-burst valve, ram lock-off handle and Security Struts
• Equipped with Security Struts for an additional safety layer
• Fast-acting air pump for rapid operation
• Air-over-oil hydraulic design for increased performance and longer cylinder life
• Each unit supplied with 1x Dish Head Pansy and 1x Vee Adapter
• Front and rear handles for ergonomic movement; 800 mm sprung base with retracting castors above 600 kg

Specification
20T capacity with a 750 mm lifting stroke, minimum height 1200 mm and maximum height 2000 mm.

Product details (table)
Wheels: The lifting cylinder is mounted in an 800 mm square sprung base and is moved on 4 castors; above 600 kg the castors retract and the unit sits solidly on the floor.
Power Pack: High-output hand/air pump with delivery valve, preset overpressure valve and dead-man release valve supplies flow to the cylinder. Control is by a single air valve: up for advance/power lift, down for retract.
Rams: Double-acting hydraulic cylinder with 750 mm stroke. Chrome-plated rods and advanced seals ensure long, trouble-free service life.
Warranty & compliance: 5 year warranty (T&Cs apply). Designed and manufactured to Machinery Directive 98/37/EC and BS EN 1494:2001 (materials handling equipment); compliant with EC requirements and LOLER. Each unit is fully tested, serial-numbered and supplied with a test certificate.

Accessories

• Supplied accessories: 1x Dish Head Pansy and 1x Vee Adapter. Optional accessories: spreader beams and transmission jack tilt tops.

Technical specifications

• Capacity: 20 tonne
• Lifting stroke: 750 mm
• Minimum height: 1200 mm
• Maximum height: 2000 mm
• Hydraulic design: Air-over-oil
• Safety features: safety lowering valve, anti-burst valve, ram lock-off handle, Security Struts
• Mobility: 800 mm square sprung base on 4 castors; castors retract above 600 kg
• Pump: High-output hand/air pump with delivery valve, preset overpressure valve and dead-man release valve
• Rams: Double-acting hydraulic cylinder with chrome-plated rods and advanced seals
• Included adapters: 1x Dish Head Pansy, 1x Vee Adapter
• Warranty: 5 years (terms and conditions apply)
• Standards: Designed and manufactured to Machinery Directive 98/37/EC and BS EN 1494:2001; compliant with EC requirements and LOLER
