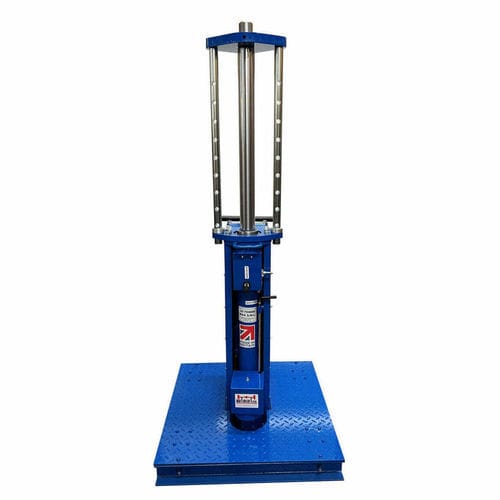

Floor jack

hydro-pneumatic15 tonsgarage

Overview
This UK-made 15 tonne pit floor jack operates as an air-over-oil hydraulic unit and is fitted with security struts for additional user protection. It is designed to replace conventional jacking beams on pit floors and can also be used with garage post/column lifts.

Key features

• Capacity: 15 tonne with 750 mm lifting stroke; minimum height 1200 mm, maximum height 2000 mm.
• Specifically designed for operation on pit floors instead of conventional jacking beams.
• Suitable for use with post/column lifts on garage floors.
• Quadruple safety measures: safety lowering valve, anti-burst valve, ram lock-off handle and Security Struts.
• Fitted Security Struts provide an additional mechanical safety layer during maintenance.
• Fast-acting air pump for efficient lifting cycles.
• Air-over-oil hydraulic design to improve cylinder performance and longevity.
• Supplied with 1x Dish Head Pansy and 1x Vee Adapter for load contact versatility.
• Front and rear handles for ergonomic movement and positioning.

Accessories available

• 13T Fixed Spreader Beam for this jack
• 13T Telescopic Spreader Beam
• 1.5T Capacity Transmission Tilt Top

Specification
Wheels: The lifting cylinder is mounted in an 800 mm square sprung base and is moved on four castors. Above 600 kg load the castors retract and the unit sits solidly on the floor.
Power Pack: High-output hand pump with delivery valve, preset overpressure valve and 'dead man' release valve provides pressurised flow to the cylinder. Single air valve controls advance/power lift (up) and retract (down).
Rams: Double-acting hydraulic cylinder with 750 mm stroke. Chrome-plated piston rods and modern seal technology ensure long service life and low maintenance.
Warranty: 5 year warranty (T&Cs apply). Designed and manufactured in accordance with Machinery Directive 98/37/EC and engineering standard BS EN 1494:2001 (materials handling equipment). Complies with EC requirements and LOLER lifting regulations. Each unit is fully tested, serial numbered and supplied with a test certificate.

Technical specifications

• Brand: Autolift
• Model name: 15 Tonne Air Pit Floor Jack with Security Struts
• Capacity: 15 tonne
• Lifting stroke: 750 mm
• Minimum height: 1200 mm
• Maximum height: 2000 mm
• Base: 800 mm square sprung base with 4 castors (castors retract above 600 kg)
• Hydraulic design: Air-over-oil hydraulic system
• Power pack: High-output hand pump with delivery valve, preset overpressure valve and 'dead man' release valve; single air valve control
• Safety features: safety lowering valve, anti-burst valve, ram lock-off handle, Security Struts
• Included adapters: 1x Dish Head Pansy, 1x Vee Adapter
• Mobility: Front and rear handles for ergonomic movement
• Warranty: 5 year (T&Cs apply)
• Standards & compliance: Machinery Directive 98/37/EC; BS EN 1494:2001; complies with EC requirements and LOLER lifting regulations
• Documentation: Each unit fully tested, serial numbered and supplied with a test certificate
