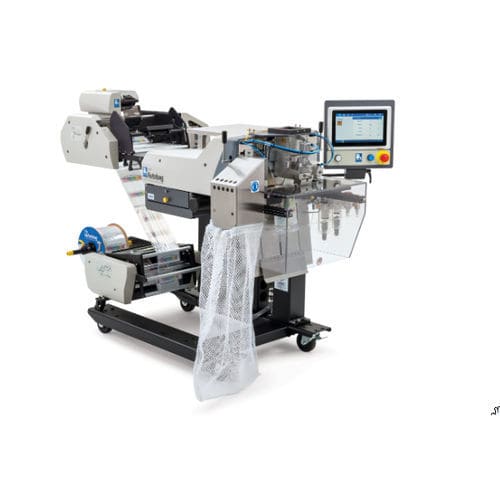

Inclined bagging machine AUTOBAG® 500™

weightform fill sealautomatic

Overview
The AUTOBAG® Brand 500 High-Speed Bagging System is an automatic filling and sealing machine engineered for reliable, flexible and high-throughput packaging operations. Capable of cycling at rates over 100 bags per minute, the system maximizes uptime while reducing total cost of ownership. The machine is designed for safe hand-load operation without light curtains or double palm switches and can be configured for left- or right-hand access to the HMI, cycle switch and bag loading stations to improve ergonomics and operator productivity. The open architecture supports integration with AUTOBAG® and third-party counters, scales and infeeds and can be networked for full pack-station integration and central monitoring. When paired with the AutoLabel 500™ inline imprinter, it forms a complete Print-and-Pack™ station.

Bag Size Options / Cycling Speed
Bag Size Options: From 2" W x 2.5" L to 12" W x 20" L supported (36" long unsupported)
Cycling Speed Capability: Over 100 bags per minute

Features and Benefits

• Easily integrates with inline printers, counters, scales, and conveyors for semi- to fully-automatic bagging
• Modular components and dedicated service access simplify maintenance and repairs to maximize uptime
• Multi-position unwind with tension control simplifies changeover
• AutoTouch™ control screen provides operator tutorials, help system, on-board diagnostics and performance monitoring
• Expanded bag size support and adjustable pass-through for flexible product handling
• Processor-controlled servo motors, Ethernet-capable networking and flexible mechanical design streamline system integration
• Compact footprint minimizes floor space requirements
• Height adjustment and casters for operator comfort and portability
• Optional 45° tilt for orienting long or delicate products
• Adjustable pass-through up to 5" (125 mm) for maximum flexibility
• Over 100 stock bag styles available; custom bags manufactured with up to 10-color printing and special features
• Redesigned sealing area with improved temperature control and optional seal-flatteners for consistent seals
• Optional accessories: infeed funnels, raised unwind, SimpleCount™ counting system, product load tray, bags-in-a-box adapter

Specifications
Weight: 350 lbs.
Electrical: Universal Input: 110V to 240V VAC, 50/60 Hz
Power Consumption: 500 Watts (VA) max
Air Feed: 5 CFM / 80 psi of clean, dry air
Width: 37.6 in. (adjustable)
Height: 37.1 to 47.1 in.
Length: 64.5 in.
Pass-Through: 5 in. max
Bag Thickness: 1.09 to 4.0 mil
Bag Sizes: W 2 to 12 in.; L 2.5 to 20 in. (36" long unsupported)
Weighing Capacity: Up to 5 lbs. (with load shelf)

There are two versions, Long and Short. Long configuration minimum length is 5 in.; Short minimum length is 2.5 in.

Technical characteristics / specifications

• Cycle rate: Over 100 bags per minute
• Supported bag width: 2–12 in. (55–300 mm)
• Supported bag length: 2.5–20 in. (70–550 mm)
• Bag thickness: 1.09–4.0 mil (35–100 µm)
• Machine weight: 350 lbs. (158 kg)
• Electrical: 110–240 VAC, 50/60 Hz (universal input)
• Max power consumption: 500 W (VA)
• Air requirement: 5 CFM at 80 psi (clean, dry air)
• Maximum pass-through: 5 in. (125 mm)
• Footprint (approx.): Width 37.6 in. x Height 37.1–47.1 in. x Length 64.5 in. (955 x 943–1,196 x 1,639 mm)
• Weighing capacity (with load shelf): Up to 5 lbs. (2.2 kg)
