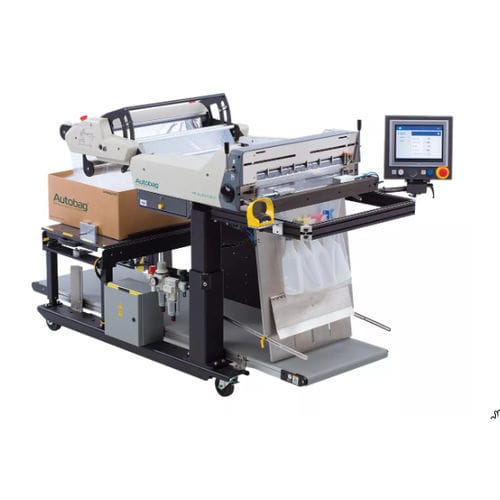

Horizontal bagging machine AUTOBAG® Brand 800™

HFFSfor open bagsfor large bag

Overview
The AUTOBAG® 800S™ high-speed wide bagging system is designed for efficient packaging of large or multiple items in bags up to 22 in (550 mm) wide. Its advanced bag-opening technology grips and holds the bag open, creating a square opening up to 11 in x 11 in (275 x 275 mm) for easy loading. The open, inherently safe design reduces guarding needs, improves operator ergonomics and throughput, and integrates with AUTOBAG® and third-party counters, scales and infeeds.

Bag Size Options
Bag width: 10 to 22 in (255–550 mm); Bag length: 10 to 36 in (255–900 mm)

Features and Benefits

• Minimal guarding for unobstructed access to the open bag
• Simple bag threading for fast changeovers and continuous production
• Programmable pass-through up to 11 in (275 mm) for maximum flexibility
• Runs bags up to 22 in (550 mm) wide for bulky products or multiple items per bag
• Coordinated seal flattener for wrinkle-free seals
• Sophisticated tension control unit centers and monitors film position throughout the bagging cycle
• Compact footprint minimizes floor space requirements
• Easily integrates with automation equipment and existing production lines
• Modular bag storage shelf accelerates bag changeovers
• AutoTouch™ control screen with operator tutorials, help system, on-board diagnostics, data retrieval and performance monitoring (menu or graphic selection)
• Advanced bag opening allows more product per bag, reducing waste
• Optional additions: rear takeaway conveyor, side-exit takeaway conveyor

Specifications
Weight: 660 lbs (300 kg). Electrical: 110/220 VAC switchable, 50/60 Hz, 1.0 kW max, 20 A circuit. Air feed: 5 CFM / 80 psi clean, dry air. Machine width: 45.3 in (adjustable) / 1 150 mm. Height: 43.5–55.5 in / 1 105–1 410 mm. Length: 72 in / 1 829 mm. Pass-through: up to 11 in / 275 mm. Bag thickness: 1.09–4.0 mil / 35–100 µm. Supported bag sizes: W 10–22 in (255–550 mm); L 10–36 in (255–900 mm). Weighing capacity: up to 10 lbs (with load shelf) / up to 4.5 kg.

Technical specifications

• Weight: 660 lbs (300 kg)
• Electrical: 110/220 VAC switchable, 50/60 Hz, 1.0 kW max, 20 A circuit
• Air feed: 5 CFM / 80 psi clean, dry air
• Adjustable width: 45.3 in / 1 150 mm
• Height range: 43.5–55.5 in / 1 105–1 410 mm
• Length: 72 in / 1 829 mm
• Programmable pass-through: up to 11 in / 275 mm
• Bag thickness supported: 1.09–4.0 mil / 35–100 µm
• Bag sizes supported: Width 10–22 in (255–550 mm); Length 10–36 in (255–900 mm)
• Weighing capacity (with load shelf): up to 10 lbs / 4.5 kg
• Optional conveyors: rear takeaway conveyor, side-exit takeaway conveyor
