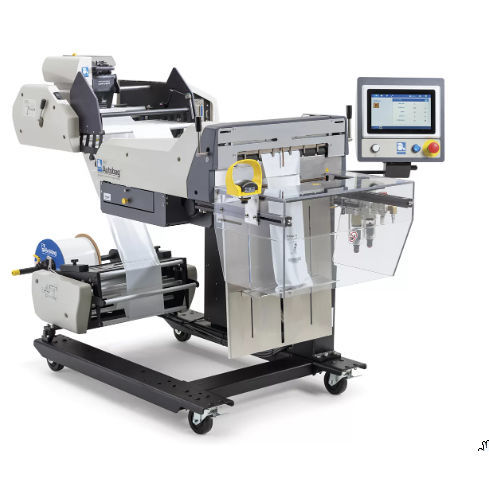

Inclined bagging machine AUTOBAG® 600™

HFFSautomaticpouch

Overview
The AUTOBAG® 600 wide automatic bagging system is a high-speed filling and sealing machine engineered for industrial packing of large or bulk products. Designed for safe hand-load operation and flexible integration, the system maximizes throughput while simplifying maintenance and diagnostics.

Bag size options
Supported bag widths: 4"–16" (100–400 mm). Supported bag lengths: 5.5"–27" (140–680 mm). Note: 36" (914 mm) length unsupported.

Cycling speed capability
Over 65 bags per minute (dependent on product, bag style and infeed method).

Features and benefits

• Open, modular design for straightforward integration with inline printers, counters, scales and conveyors
• Processor-controlled servo motors and Ethernet-capable networking for easy automation and central monitoring
• AutoTouch™ HMI with operator tutorials, on-board diagnostics and performance monitoring
• Multi-position unwind with tension control to simplify film changeover
• 16" (400 mm) wide loading area for large or bulk products; adjustable pass-through up to 6" (150 mm)
• Compact footprint, simple height adjustment and casters for operator ergonomics and portability
• Optional 45° tilt for orienting long or fragile items and optional seal-flatteners for consistent seals
• Supports 1.09–4.0 mil (35–100 µm) bag thickness; over 100 stock bag styles available and custom printing up to 10 colors

Specifications

• Weight: 410 lb (185 kg)
• Electrical: Universal input 110–240 VAC, 50/60 Hz
• Power consumption: 500 W (VA) max
• Air feed requirement: 5 CFM @ 80 psi (clean, dry air)
• Machine width (adjustable): 41.6 in (1 057 mm)
• Height: 37.1–47.1 in (943–1 196 mm)
• Length: 69.5 in (1 765 mm)
• Pass-through (max): 6 in (150 mm)
• Bag thickness supported: 1.09–4.0 mil (35–100 µm)
• Bag size range: W 4–16 in (100–400 mm); L 5.5–27 in (140–680 mm)
• Weighing capacity (with load shelf): up to 5 lb (2.2 kg)

Optional accessories

• Infeed funnels and product load trays
• Inline printers and AutoLabel 600™ for Print-and-Pack stations
• Raised unwind, seal-flatteners and SimpleCount™ counting system
• Bags-in-a-box adapter and custom bag solutions
