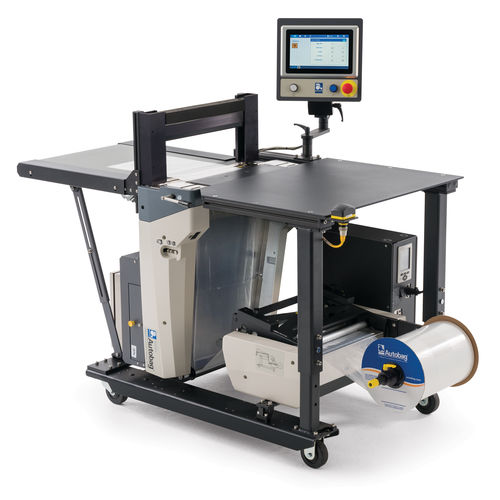

Horizontal bagging machine AUTOBAG® 600H™

form fill sealautomaticfor open bags

Overview
The AUTOBAG® 600H Horizontal Wide Bagging System is an automatic filling and sealing machine designed for wide-format bags up to 16 in. (400 mm). It combines a large load area for order preparation and bulk product queuing with a compact footprint to minimize floor space. Built for reliable operation and flexible production, the system is optimized to maximize uptime and reduce total packaging cost. When used with genuine AUTOBAG® pre-opened bags-on-a-roll or bags-in-a-box, the 600H provides consistent wide-bag packaging supported by factory engineering and field service.

Key product description
Multi-position unwind with tension control streamlines changeovers. The machine layout features few moving parts to reduce lifecycle cost and improve reliability. On-board diagnostics and modular components simplify maintenance. The AutoTouch™ Control Screen supplies help, on-board diagnostics and performance data. The 600H is suitable for short-run print & pack, ecommerce and mail-order fulfillment, and other large-bag packaging operations.

Bag Size Options
Bag width: 4 to 16 in. (100–400 mm); Bag length: 5.5 to 36 in. (140–900 mm).

Features and benefits

• 24 in. (600 mm) conveyor with open-space design for unrestricted access and easy transfer to secondary conveyors
• Simple machine design minimizes operator training — suited to high-turnover or seasonal labor
• Inherently safe design for maximum operator protection
• Load direction configurable for left- or right-hand operation
• Multi-position unwind with tension control for fast changeovers
• Adjustable pass-through up to 6 in. (150 mm) for packaging flexibility
• Advanced sealing technology and temperature control for consistent seals
• Fewer moving parts reduce ownership cost; modular components and diagnostics ease maintenance
• AutoTouch™ Control Screen provides help system access, diagnostics and performance metrics

Technical specifications

• Weight: 570 lbs (259 kg)
• Electrical: Universal input 110–240 V AC, 50/60 Hz
• Power consumption: 650 Watts (VA) max
• Air feed: 5 CFM / 80 psi (clean, dry air)
• Footprint (W x H x L): 34.38 in. (874 mm) x Load table 34.15 in. (867 mm) / Top of HMI 53.58 in. (1,361 mm) x 66.6 in. (1,692 mm)
• Pass-through: up to 6 in. (150 mm)
• Bag thickness: 1.09–4.0 mil (35–100 µm)
• Bag sizes supported: Width 4–16 in. (100–400 mm); Length 5.5–36 in. (140–900 mm)
• Control: AutoTouch™ Control Screen with help, diagnostics and performance data
• Changeover: Multi-position unwind with tension control

Intended use and advantages
The AUTOBAG® 600H is engineered for operations requiring wide-bag throughput with minimal floor space and simplified maintenance. It is intended for ecommerce, mail order, print & pack and other applications where reliable, repeatable packaging of large-format bags improves throughput and lowers total cost of ownership.

Technical features list

• Designed for use with AUTOBAG® pre-opened bags-on-a-roll or bags-in-a-box
• Modular components for fast service and upgrades
• On-board diagnostics to reduce downtime
