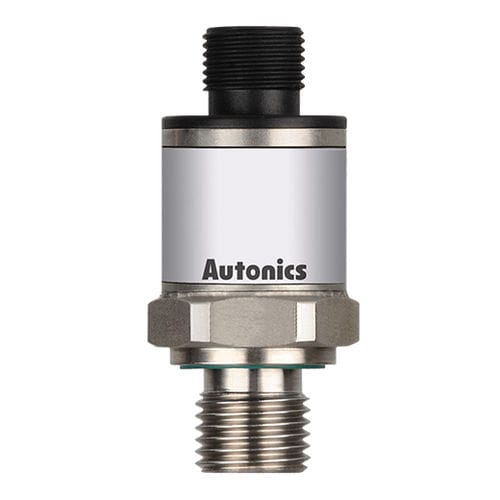

Relative pressure transmitter TPS30 series

absoluteanalogM12 connector

Stainless Steel Pressure Transmitters The TPS30 series compact stainless steel pressure transmitters are ideal for measuring gas, liquid, or oil pressure in tight spaces or small machinery. The robust build allows measurement of high pressure (0 to 60 MPa / 0 to 600 bar) and low pressure (0 to 2 MPa / 0 to 20 bar) in temperature conditions ranging from -40° to 125°C. The transmitters are available in 5 different connector types and can be applied across diverse applications from packaging machines to heavy machinery, factories, and shipbuilding. Main features Robust build allows high or low pressure measurement in high and low temperature environments - High pressure (0 to 60MPa/0 to 600bar), low pressure (0 to 2MPa/0 to 20bar) Sealed gauge pressure (-0.1 to 2MPa/-1 to 20bar), absolute pressure (0 to 2MPa/0 to 20bar), gauge pressure (0 to 60MPa/0 to 600bar) - Temperature range (-40˚ to 125℃) (may vary by model) Applicable in diverse settings including packaging machines, heavy machinery, factories, and shipbuilding Pressure measurement of any gas, liquid, or oil 316L stainless steel body for high corrosion resistance (except head component of head types) Compact size allows easy installation in tight or limited spaces 1 ms high-speed response rate Analog output : current (DC 4-20mA), voltage (1-5VDC) Built-in reverse polarity protection circuit Various connector types : cable type, DIN43650-A connector type, DT04-3P connector type, M12 connector type, head type Available thread sizes : G3/8, G1/4, R1/2 IP67 protection structure (IEC standard) (DIN43650-A connector type : IP65)
