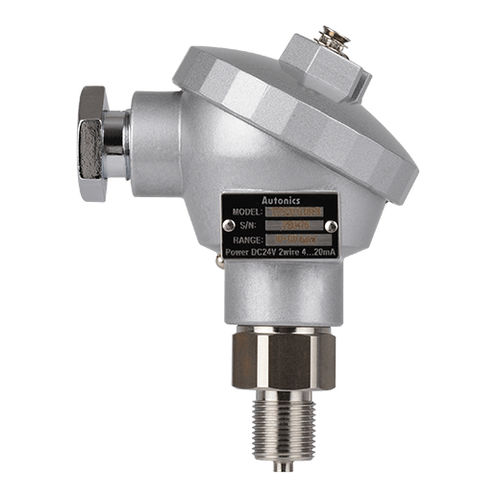

relative pressure transmitter / absolute / membrane / analog output
TPS20 series



  • Pressure type:

    relative, absolute

  • Technology:


  • Output signal:

    analog output

  • Other characteristics:

    stainless steel, precision, for liquids and gases

  • Process temperature:

    Min.: -10 °C (14 °F)

    Max.: 70 °C (158 °F)

  • Pressure range:

    Min.: -1.03 bar (-14.94 psi)

    Max.: 350 bar (5,076.32 psi)


Stainless Steel Pressure Transmitters (Long Body)

The TPS20 series stainless steel pressure transmitters are ideal for measuring gas, liquid, or oil pressure in various applications with high accuracy measurement. The transmitters offer high accuracy measurement (±0.3%F.S.) and analog output (DC 4-20 mA). The TPS20 series is available in 3 different connector types and can be applied across diverse applications from packaging machines to heavy machinery, factories, and shipbuilding.
