DC motor / two-phase stepper / 24V / closed-loop
AiC Series

Add to MyDirectIndustry favorites
Compare this product
DC motor / two-phase stepper / 24V / closed-loop DC motor / two-phase stepper / 24V / closed-loop - AiC Series
{{requestButtons}}

Characteristics

  • AC/DC:

    DC

  • Type:

    two-phase stepper

  • Voltage :

    24V

  • Other characteristics:

    closed-loop, high-torque, low-vibration, precision, IP20

Description

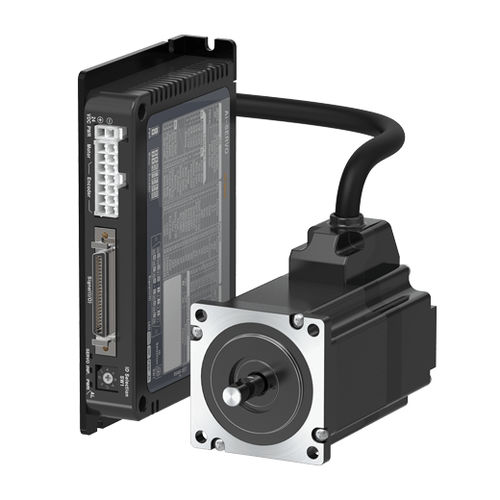

The AiC series 2-phase closed loop stepper motor system features motor drivers with integrated controllers. Direct control is possible via network connection with master control devices, offering easy programming, connection, and installation. The stepper motor system offers accurate and precise position control through feedback from the integrated encoder without the hassle of tuning and vibration of conventional servo motors. The encoder feedback provides information of the current position in reference to the input pulse with a high resolution of 10,000 pulses per revolution, allowing precise and accurate position control down to 0.036°. The series also features high torque compared to similar in-class models from other brands and various alarm functions for enhanced safety.
