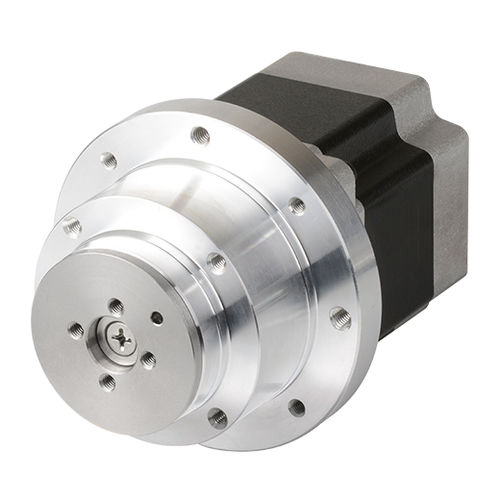

Five-phase stepper motor AK-R seriesDC24 Vcompact
Add to favorites
Compare this product
Characteristics
- Type
- five-phase stepper, DC
- Voltage
- 24 V
- Configuration
- compact
- Other characteristics
- high-efficiency, high-torque
- Torque
3.43 Nm, 3.92 Nm, 4.9 Nm
(2.529838 ft.lb, 2.891244 ft.lb, 3.614055 ft.lb)- Rotational speed
Max.: 360 rpm
(2,261.9467 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
5-Phase Stepper Motors (Rotary Actuator Type)
The AK-R series rotary actuator type 5-phase stepper motors are ideal for applications requiring high torque. The AK-R series offer great cost efficiency with its low, economical prices.
Main features
Compact, space-saving design ideal for building compact-sized systems
Low, economical prices for improved cost efficiency
Backlash (frame size) : 60mm : ±20’ (0.33˚)
Basic step angle
- 1:5 → 0.144˚, 1:7.2 → 0.1˚, 1:10 → 0.072˚
Allowed speed
- 1:5 → 0 to 360rpm, 1:7.2 → 0 to 250rpm, 1:10 → 0 to 180rpm
Built-in brakes (AK-RB Series)
Brake is released when 24VDC is applied to brake wire (AK-RB)
Frame size : 60mm
