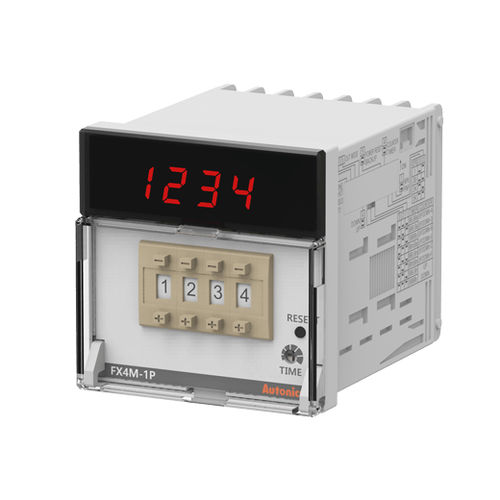

Digital timer FXM/FXH Series

8-digit4-digit

The FXM/FXH series digital counter/timers integrate functions of both counters and timers. Counting speeds of 1 cps, 30 cps, 2 kcps, and 5 kcps are available and various time setting ranges are also available for the timer function. Count-up, count-down, and count up/down modes are available for accurate measurement and display of various system configurations. Users can easily switch between NPN/PNP inputs using the attached DIP switch. The FXM/FXH series is available in 4-digit, 6-digit, and 8-digit models in 2 standard DIN sizes (W 72 x H 72, W 48 x H 96 mm) Main features Counting speeds : 1cps/30cps/2kcps/5kcps Switch between counter and timer operation using DIP switch No-voltage input(NPN) using DIP switch Operation modes : count-up, count-down, count-up/down Set decimal point, hr/min/sec display with RESET key Counter 20 input modes, 18 output modes Timer Various output modes (16 output modes) Various time setting ranges: - 8-digit models : 0.01sec to 99999hr 59.9min - 6-digit models : 0.1sec to 99999.9hr - 4-digit models : 0.01sec to 9999hr Output model types : single preset, dual preset, indicator only Power supply : 100-240VAC 50/60Hz
