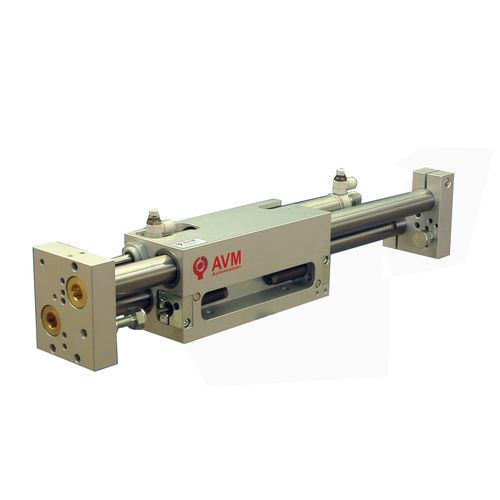

Linear array manipulator Type 37

pneumaticwith gripping toolpositioning

Pneumatic manipulator for handling drived by ISO pneumatic cylinder. To create pneumatic Pick and Place (P&P). Guided by 2 rods on ball bushings and end stroke adjustable by mechanical stops. Hydraulic shock absorbers, inductive sensors and flow limitation are supplied. Options : Exit intermediate position pneumatically retractable Mechanical rod clamping Product Made in France Pneumatic pick and place (P&P) and 3 axes handling systems The combination of 2 pneumatic manipulators makes it possible to create pick & place (XZ manipulators) for assembly, loading, packaging machines … By combining them with gantries it’s possible to realize 3-axis cartesian pneumatic manipulators. Equipped with hydraulic dampers, inductive sensors and flow limiters, these manipulators are ready to be installed and wired. Optimized end of stroke adjustments The fine adjustment of the stroke is done by mechanical stops without any intervention on the hydraulic dampers and the inductive detectors: this saves time, guarantees the reliability of the adjustment and ensures an optimal lifetime of these components. All these components are very common on the market and are very accessible, thus facilitating the maintenance, knowing that we have them in stock. Pneumatic manipulator with intermediate positions An intermediate position module at the output makes it possible to carry out 2 different strokes with the same positioning accuracy. Very often used on vertical manipulators when the catch height and the drop height are not the same, they are also used horizontally to deposit, for example, a bad part in a discharge chute.
