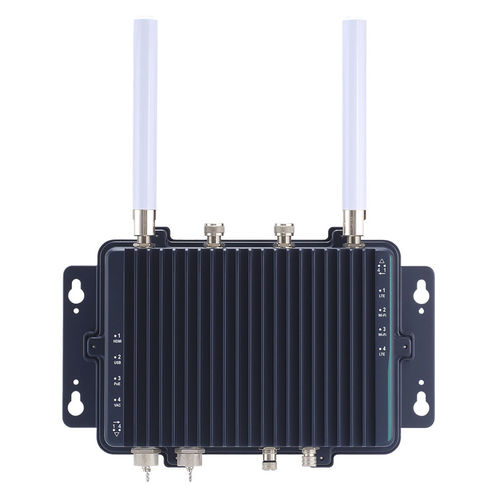

Rugged IP67-rated Fanless Edge AI System with NVIDIA® Jetson Xavier™ NX, 1 HDMI, 1 GbE PoE, 1 USB and 100 to 240 VAC Power Input
IP67-rated design, specifically for outdoor environments
NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
High AI computing performance for GPU accelerated processing
-30°C to +50°C operating temperature range
100 to 240 VAC wide range power input with 10kV surge protection
4 N-jack antenna openings with waterproof design
Features M12 lockable I/Os
1 IEEE 802.3at GbE PoE (30W)
Introduction
The AIE800-904-F adopts the NVIDIA® Jetson Xavier™ NX platform which has a powerful 6-core NVIDIA Carmel ARM® v8.2 (64-bit) processor and 384-core NVIDIA Volta™ GPU. In addition to the superior performance and power advantage of accelerated computing, the AIE800-904-FL is designed with a high IP67 degree of protection from water and dust ingress. Moreover, it comes with a wide operating temperature range of -30°C to 50°C and a vibration endurance for up to 3Grms. It also features M12 type I/O connectors and four waterproof N-jack antenna openings for operational stability in rugged environments. The AIE800-904-FL has 8GB of LPDDR4x memory and 16GB eMMC onboard.
