Compact DIN-rail Fanless Embedded System with Intel® Atom® x5-E3940 Processor for In-Vehicle Gateway Application
Features
CE, FCC certified; ISO 7637-2 compliant
Intel® Atom® x5-E3940 processor
Extreme cost-effective with fanless and cableless design
Wide operating temperature range from -40°C to +70°C
Supports 9-36 VDC & 12/24 VDC typical in-vehicle power input
Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
Support COM, CAN, USB, GbE PoE LAN
8-bit programmable DIO for IoT gateway applications
Supports SocketCAN
AMS.AXView intelligent remote monitoring
Introduction

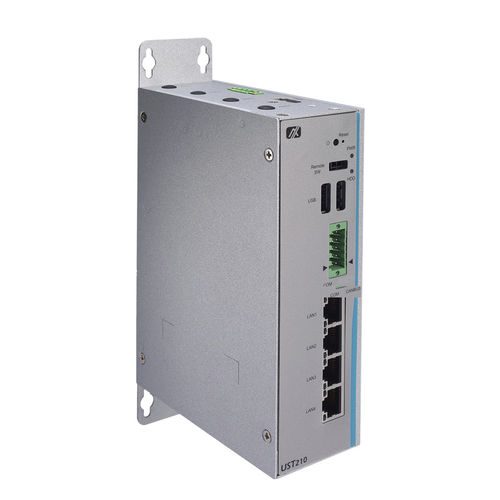

The UST210-83K-FL, its new compact DIN-rail fanless in-vehicle box PC powered by the Intel Atom® x5-E3940 processor. The UST210-83K-FL features a Smart Ignition function for power on/off scheduling to protect vehicle battery from unstable voltage. Furthermore, the in-vehicle box PC is in compliance with ISO 7637-2 and can endure vibration of up to 3 Grms, ensuring stable and reliable operation under challenging environmental conditions.
