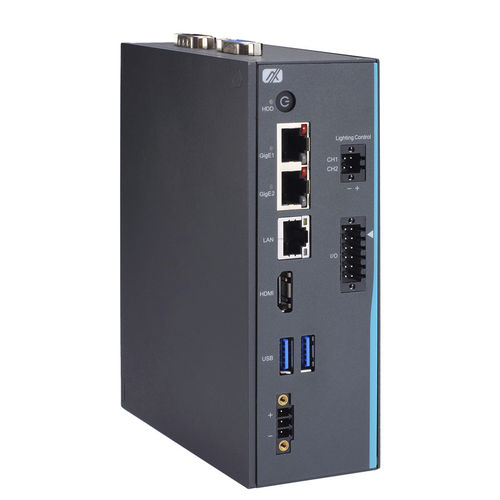

Industrial vision system MVS100-323-FL

visual guidancecompactIntel® Atom® x5-E3940

Mini Vision System with Intel Atom® x5-E3940 Processor, Vision I/O, 2-CH PoE and 2-CH LED Output Features Integrated real-time vision I/O 2-CH trigger input 2-CH trigger output 2-CH LED lighting control 4-CH isolated DIO Supports camera interfaces 2 IEEE802.3af GbE LAN ports (PoE) Power input: 24 VDC -10°C to +55°C operating temperature range Supports TPM 2.0 function Introduction The MVS100-323-FL is powered by the Intel® Atom® x5-E3940 processor. The two IEEE802.3af GbE LAN ports (PoE) ensure independent bandwidth capacity and power supply for GigE cameras. Through software integration, its integrated lighting controller comes with both strobe mode and trigger mode, which can support various types of LEDs. Moreover, the ultra-compact vision system has real-time vision I/O for camera trigger to ensure high-quality image capturing. A set of isolation digital I/O channels allows this vision system to control different kinds of devices such as robotics and pneumatic actuator for object sorting.
