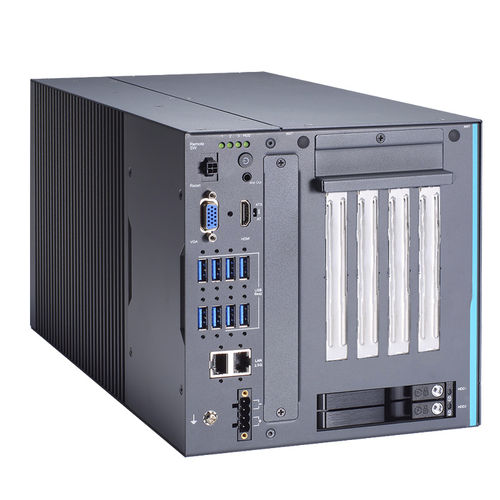

GPU computer IPC970

embedded10th generation Intel® Core™USB

Industrial System with LGA1200 Socket Intel® Xeon® and 10th Gen Intel® Core™ i7/i5/i3 Processors, Intel® W480E, Front-access I/O and PCIe Slots Features Intel® Xeon® and 10th Gen Intel® Core™ i7/i5/i3 processors, up to 80W Intel® W480E chipset NVIDIA® RTX3090 GPU card Supports M.2 Key B slot for 5G wireless connection Supports M.2 Key E slot for Wi-Fi connection Supports RAID 0,1 Supports power-on delay function Supports TPM 2.0 Introduction The IPC970 is powered by the Intel® Xeon® or 10th generation Intel® Core™ i7/i5/i3 processors with the Intel® W480E chipset. The powerful edge computing system supports NVIDIA® GeForce RTX™ 3090 graphics card with 10,496 CUDA cores and a whopping 24GB of GDDR6X memory for powerful GPU computing capability. The ruggedized IPC970 provides flexible expansion options with one I/O module slot and three PCIe slots plus one blank expansion slot. In addition, it has a full-size PCIe Mini Card slot for Wi-Fi/Bluetooth/LTE modules, one M.2 Key B 3042/3050 socket for 5G wireless connections, and one M.2 Key E 2230 socket for Wi-Fi/Bluetooth modules. Its front-facing I/O design makes it easy to access and deploy. To ensure stable and reliable operation in harsh industrial environments, the IPC970 has a wide operating temperature range of -10°C to +70°C and a power input of 24V DC (uMin=19V/uMax=30V) with power-on delay function, over-voltage protection, over current protection, and reverse voltage protection.
