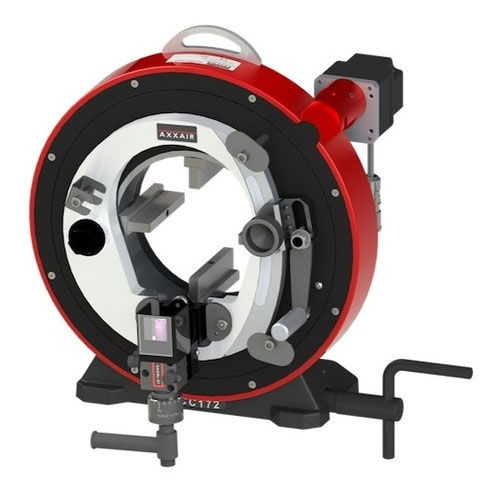

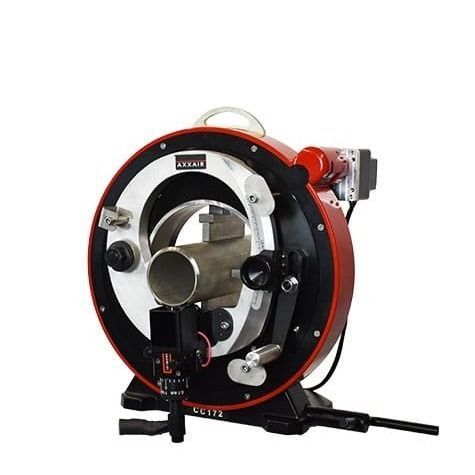

TIG orbital welding machine SX172 series

automaticfor pipesfor carbon steel

Key data
TUBE OD RANGE: 0.625–6.625" / 16–173 mm
COOLING SYSTEM: Air or water cooled
FUNCTIONS: Orbital TIG welding by fusion or fusion + wire

Overview
The SX172 prefabrication orbital welding system is engineered for accurate and repeatable tube assembly prior to on-site installation. Using orbital TIG welding by fusion or fusion + wire, it delivers consistent welds on stainless steel, carbon steel and exotic alloys. Powered by SAXX welding power sources, the SX172 supports efficient workshop prefabrication and can be rapidly converted to orbital cutting or beveling, reducing equipment footprint and production time.

Product Advantages

• Orbital TIG welding by fusion or fusion + wire for repeatable, consistent weld profiles
• Accurate axial adjustment of electrode and tube for precise joint alignment
• Micrometric arc-gap adjustment without special tooling for optimal weld control
• Mechanical OD tracking to maintain constant electrode-to-tube distance and compensate for tube ovalization
• Concentric clamping system to minimize tube distortion during welding
• Automatic orbital rotation for uniform penetration and weld consistency
• Stainless steel clamping jaws to prevent contamination and protect internal tube surfaces
• Suitable for stainless steel, carbon steel and exotic alloys across multiple industries
• Powered by SAXX welding power sources for automated, reliable operation
• One machine — three applications: welding, cutting and beveling with fast changeover using two setting screws
• Ideal for workshop prefabrication to reduce on-site welding time and installation risk

Specifications table (Air cooled vs Water cooled)
DESCRIPTION | SX172 Air cooled | SX172 Water cooled
Power | Air cooled | Water cooled
Part No. | SX172-A | SX172-E
Locking tube range | 0.625 – 6.625" / 16 – 173 mm | 0.625 – 6.625" / 16 – 173 mm
100% duty cycle | 100 A | 200 A
Electrode diameter | 1/16" or 3/32" / 1.6 or 2.4 mm | 1/16" or 3/32" / 1.6 or 2.4 mm
Cooling system | No | Yes
Max operating temperature | 40 °C / 104 °F | 40 °C / 104 °F
Max acoustic radiation | < 70 dB | < 70 dB
Unit weight | 52 kg / 115 lbs | 52 kg / 115 lbs

Technical characteristics / specifications

• Model: SX172
• Tube OD range: 0.625–6.625" (16–173 mm)
• Functions: Orbital TIG welding by fusion or fusion + wire
• Cooling: Air cooled (SX172-A) or Water cooled (SX172-E)
• Part numbers: SX172-A (air cooled), SX172-E (water cooled)
• 100% duty cycle current: 100 A (air), 200 A (water)
• Electrode diameter: 1/16" or 3/32" (1.6 or 2.4 mm)
• Max operating temperature: 40 °C / 104 °F
• Max acoustic radiation: < 70 dB
• Unit weight: 52 kg / 115 lbs
• Key features: axial electrode/tube adjustment, micrometric arc-gap control, mechanical OD tracking, concentric clamping, stainless steel jaws, automatic orbital rotation, rapid changeover to cutting/beveling, powered by SAXX welding power sources
