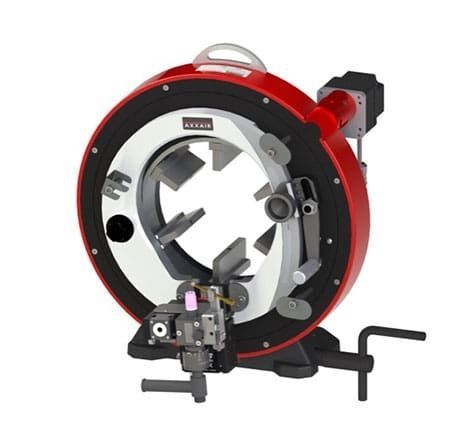

TIG orbital welding machine SX222 AVC / OSC

automaticfor pipesfor stainless steel

Overview
The SX‑222 AVC/OSC is a prefabrication orbital TIG welding machine designed for medium‑diameter tube fabrication where welding precision and repeatability are crucial. Equipped with Arc Voltage Control (AVC) and Oscillation (OSC), it ensures a stable arc, precise electrode positioning and consistent multi‑pass welds, even on challenging wall thicknesses.

Product data
TUBE OD RANGE: 2.375–8.625" / 55–228 mm
COOLING SYSTEM: Water‑cooled
FUNCTIONS: Orbital TIG welding with AVC / OSC

Description
Driven by SAXX welding power sources (SAXX‑210 AVC/OSC or SAXX‑300 AVC/OSC), the SX‑222 delivers a complete orbital TIG solution for workshop prefabrication. Its modular design allows rapid conversion to orbital cutting or beveling, offering flexibility for industrial production lines.

Product Advantages

• Orbital TIG welding with AVC / OSC for precise arc control and repeatable weld quality
• Arc Voltage Control (AVC) maintains a constant electrode‑to‑tube distance automatically during welding
• Oscillation (OSC) system enables controlled multi‑pass welding and uniform bead profiles
• Suitable for thick‑walled tubes up to 12.7 mm (0.5") for demanding industrial applications
• Motorized axial sweep ±10 mm (0.39") for accurate electrode positioning and weld coverage
• Concentric clamping system to minimize tube distortion and ensure alignment
• Automatic orbital rotation for uniform weld penetration around the circumference
• Stainless steel clamping jaws to prevent contamination and protect internal surfaces
• Compatible with steels and exotic alloys, including stainless steel and high‑purity materials
• Powered by SAXX welding power sources for reliable automated prefabrication welding
• 1 machine – 3 applications: welding, cutting and beveling with fast changeover using two setting screws
• Designed for workshop prefabrication to reduce on‑site work, installation time and rework

What is AVC/OSC?
Motorized arc voltage control: AVC
AVC refers to the system that monitors and adjusts the distance between the electrode and the tube by controlling arc tension. AVC keeps a consistent arc height automatically during welding, which is essential for multi‑pass orbital TIG welding to avoid torch contact with the weld pool.

The two most common applications

• When mechanical gauging of the outer diameter is not desired: AVC operates without contact and its sensor is more precise and responsive than mechanical tracking.
• When welding with filler wire and deposition under the electrode is not perfectly controlled: AVC prevents the electrode contacting the weld pool by maintaining the correct arc height.

Applications (AVC + OSC + wire)
Mechanized multi‑pass welding combines AVC, torch oscillation and filler wire addition to fill beveled joints on thicker‑walled tubes. The system supports root, fill and cap passes with controlled oscillation to ensure efficient wire deposition and consistent fusion on both sides of the joint.

Resources
Product brochure and user manual are available for installation, operation and maintenance (see product page resources).

Technical specifications

• DESCRIPTION: SX222 AVC / OSC system
• Part No.: SX222-NAOF
• Model: SX222
• Diameter / Tube OD range: 2.375 – 8.625" / 55 – 228 mm
• 100% duty cycle: 200 A
• Electrode diameter: 1/16" or 3/32" (1.6 or 2.4 mm)
• Cooling system: Water‑cooled
• Max operating temperature: 40 °C / 104 °F
• Max acoustic radiation: < 70 dB
• Unit weight: 61 kg / 134 lbs
• Motorized axial sweep (OSC) and electrode axial movement: ±10 mm (0.39")
• Suitable for wall thicknesses up to 12.7 mm (0.5")
• Concentric clamping and stainless steel clamping jaws
• Automatic orbital rotation
• Compatible with steels and exotic alloys
