TIG orbital welding machine SX222 series

automaticfor pipesfor steel

Overview

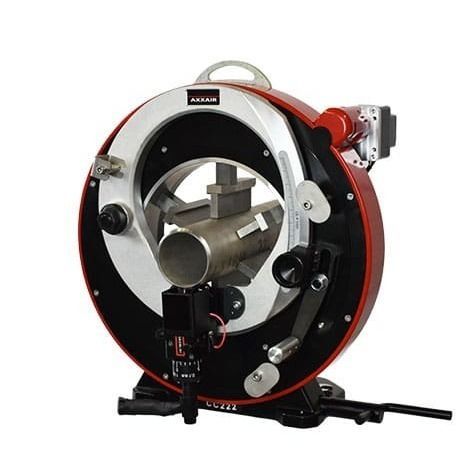

The SX222 orbital TIG welding machine is designed for workshop prefabrication of medium-diameter tubes. It supports fusion and fusion + wire processes and can be converted for orbital cutting or beveling using conversion kits. Suitable for carbon steels and exotic alloys and compatible with SAXX welding power sources.

Key data

• TUBE OD RANGE: 2.375–8.625" / 55–228 mm
• COOLING SYSTEM: Air cooled (SX222-A) or water cooled (SX222-E)
• FUNCTIONS: Orbital TIG welding by fusion or fusion + wire

Product details
The SX222 provides controlled orbital TIG welding with accurate electrode and tube positioning, micrometric arc-gap adjustment and mechanical OD tracking to maintain constant electrode-to-tube distance. The concentric clamping system and stainless-steel clamping jaws minimize tube distortion and contamination. Quick conversion kits enable cutting and beveling operations to be carried out in the workshop.

Product advantages

• Orbital TIG welding by fusion or fusion + wire for repeatable weld quality
• Accurate axial adjustment of electrode and tube for precise joint alignment
• Micrometric arc-gap adjustment without special tooling
• Mechanical OD tracking to compensate tube ovalization and keep constant electrode distance
• Concentric clamping system to reduce tube deformation
• Automatic orbital rotation for uniform penetration and consistent results
• Stainless-steel clamping jaws to prevent contamination of internal tube surfaces
• Compatible with all steels and exotic alloys
• Powered by SAXX welding power sources for controlled automated welding
• One machine with three applications: welding, cutting and beveling with fast changeover
• Optimized for workshop prefabrication to reduce on-site welding time and installation risks

Specifications table (Air cooled vs Water cooled)
DESCRIPTION | SX222 Air cooled | SX222 Water cooled
Power | Air cooled | Water cooled
Part No. | SX222-A | SX222-E
Locking tube range | 2.375 – 8.625" / 55 – 228 mm | 2.375 – 8.625" / 55 – 228 mm
100% duty cycle | 100 A | 200 A
Electrode diameter | 1/16" or 3/32" / 1.6 or 2.4 mm | 1/16" or 3/32" / 1.6 or 2.4 mm
Cooling system | No | Yes
Max operating temperature | 40 °C / 104 °F | 40 °C / 104 °F
Max acoustic radiation | < 70 dB | < 70 dB
Unit weight | 59 kg / 130 lbs | 59 kg / 130 lbs

Applications
Workshop prefabrication of medium-diameter tubes for industries requiring high-purity welds or corrosion protection; suitable for steel and exotic alloys and for processes benefiting from repeatable automated orbital TIG welding.

Technical specifications

• Model: SX222 (SX222-A air cooled, SX222-E water cooled)
• Tube OD range: 2.375–8.625" / 55–228 mm
• Functions: Orbital TIG welding by fusion or fusion + wire; convertible for cutting and beveling
• 100% duty cycle: 100 A (air cooled) / 200 A (water cooled)
• Electrode diameter: 1/16" or 3/32" (1.6 or 2.4 mm)
• Cooling system: air or water (model dependent)
• Max operating temperature: 40 °C / 104 °F
• Max acoustic radiation: < 70 dB
• Unit weight: 59 kg / 130 lbs
• Key features: axial electrode & tube positioning, micrometric arc-gap adjustment, mechanical OD tracking, concentric clamping, automatic orbital rotation, stainless-steel clamping jaws
