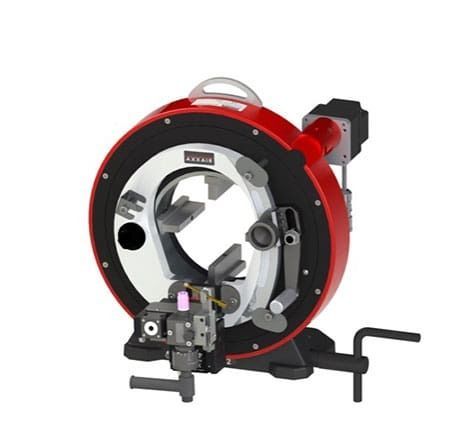

TIG orbital welding machine SX172 AVC / OSC

automaticfor pipesfor steel

Overview
The SX172 AVC/OSC prefabrication orbital welding system is engineered for consistent, high-quality tube assembly in controlled environments. Its AVC and OSC functions provide precise arc regulation and motorized electrode movement, making it ideal for thicker wall tubes and multi-pass welding applications. As part of the SAXX-powered SX-Range, the SX172 supports a flexible 1-machine, 3-application workflow and allows fast changeover between welding, cutting, and beveling with minimal setup time.

Main data
TUBE OD RANGE: 0.625″–6.625″ (16–173 mm)
COOLING SYSTEM: Water-cooled
FUNCTIONS: Orbital TIG welding with AVC / OSC

Product Advantages

• Orbital TIG welding with AVC / OSC for precise arc control and consistent weld quality
• Arc Voltage Control (AVC) automatically maintains constant electrode-to-tube distance during welding
• Oscillation (OSC) system enables controlled multi-pass welding and uniform weld bead profiles
• Suitable for thick wall tubes up to 12.7 mm (0.5″), ideal for demanding industrial applications
• Motorized axial sweep ±10 mm (0.39″) for accurate electrode positioning and weld coverage
• Concentric clamping system minimizes tube distortion and ensures precise alignment
• Automatic orbital rotation delivers uniform weld penetration around the tube circumference
• Stainless steel clamping jaws prevent tube contamination and protect internal surfaces
• Compatible with all steels and exotic alloys, including stainless steel and high-purity materials
• Powered by SAXX welding power sources for reliable, automated prefabrication welding
• 1 machine – 3 applications: welding, cutting, and beveling with fast changeover using only two setting screws
• Designed for workshop prefabrication, reducing on-site work, installation time, and rework

Specifications (table)
DESCRIPTION: SX172 AVC / OSC system
Part No.: SX172-NAOF
Diameter Range: 0.625 – 6.625″ / 16 – 173 mm
100% duty cycle: 200 A
Electrode diameter: 1/16″ or 3/32″ / 1.6 or 2.4 mm
Cooling system: Yes (water-cooled)
Max operating temperature: 40 °C / 104 F
Max acoustic radiation: < 70 dB
Unit weight: 53 kg / 117 lbs

Characteristics / technical specifications

• Model: SX172 AVC / OSC
• Part number: SX172-NAOF
• Tube OD range: 0.625″–6.625″ (16–173 mm)
• 100% duty cycle current: 200 A
• Electrode diameter options: 1/16″ (1.6 mm) or 3/32″ (2.4 mm)
• Cooling: Water-cooled system
• Maximum operating temperature: 40 °C (104 °F)
• Maximum acoustic radiation: < 70 dB
• Unit weight: 53 kg (117 lbs)
• Motorized axial sweep (OSC): ±10 mm (0.39″)
• Concentric clamping and stainless steel jaws to prevent tube distortion and contamination
• Compatible with a wide range of materials including stainless steel and exotic alloys
• Supports multi-pass welding with filler wire and AVC for consistent arc height control
