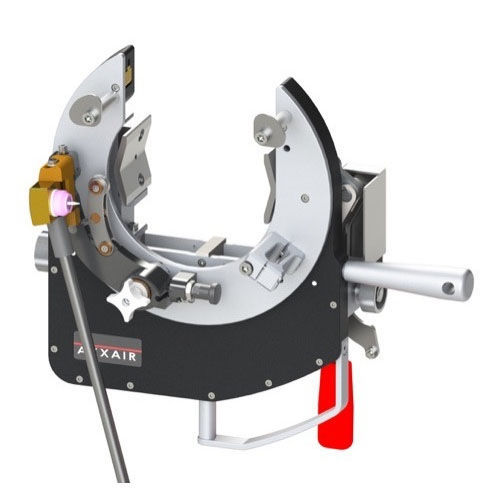

Orbital welding head SATO-115 AVC/OSC

water-cooledTIGGTAW

Overview The SATO-115 AVC/OSC open head orbital weld head is engineered for high-precision orbital TIG welding on tube outer diameters from 0.75 to 4.5 inches (19 to 115 mm). Suited for demanding sectors such as power generation, chemical processing and petrochemical industries, it produces consistent welds on stainless steel and exotic alloys.

Key Functions Integrated arc voltage control (AVC) and oscillation (OSC) ensure precise control of arc length and electrode positioning for multi-pass applications. The motorized AVC maintains a constant electrode-to-tube distance while OSC provides uniform bead distribution on thicker walls. Designed for confined spaces, the compact open head pairs with a SAXX power source and a 200 A liquid-cooled system for continuous production use.

Main Technical Highlights

• Tube OD range: 0.75 – 4.5" / 19 – 115 mm
• Cooling: liquid-cooled (water-cooled or liquid-cooled torch)
• Function: Orbital TIG welding with AVC/OSC system
• Integrated arc voltage control (AVC) maintains constant electrode-to-tube distance
• Oscillation (OSC) enables multi-pass welding and uniform bead distribution up to 12.7 mm wall thickness
• Compact open head suitable for restricted access areas
• 200 A liquid-cooled system at 100% duty cycle for continuous operation

Product Advantages

• Designed for orbital TIG welding on tube diameters from 19 to 115 mm
• Integrated AVC system maintains constant arc voltage and electrode distance
• Oscillation enables multi-pass welding on thicker wall tubes up to 12.7 mm
• Supports fusion welding and filler wire applications
• Liquid-cooled system delivers 200 A at 100% duty cycle
• Motorized axial sweep allows precise electrode positioning up to ±10 mm
• Small rotation sweep enables welding in restricted access areas
• Quick symmetrical clamping system improves setup speed and repeatability
• Adjustable handle enhances operator control and ergonomics
• Compatible with SAXX power source for advanced orbital welding performance

Notes The SATO-115 AVC/OSC is available with motor variants (straight motor or angled motor) and specific part numbers per configuration; it is optimized for stainless steels and exotic alloys and intended for industrial continuous welding operations.

Technical specifications

• Description: SATO-115 with AVC/OSC system
• Motor: Straight motor or Angled motor
• Part No.: SATO-115E51 (straight motor), SATO-115E52 (angled motor)
• Diameter range: 0.75 – 4.5" / 19 – 115 mm
• 100% duty cycle: 200 A
• Electrode diameter: 1/16" or 3/32" / 1.6 or 2.4 mm
• Cooling system: Yes (liquid-cooled / water-cooled torch)
• Max operating temperature: 40 °C / 104 °F
• Unit weight: 22 lbs / 10.6 kg
• Oscillation axial movement: ±10 mm (0.39")
• Capable of welding wall thicknesses up to 12.7 mm (0.500")
