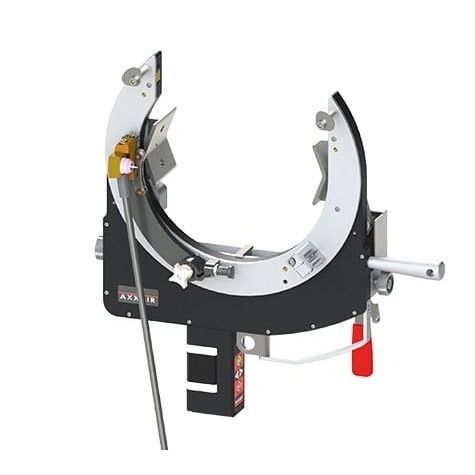

Orbital welding head SATO-220

TIGwater-cooledopen

Overview
The SATO-220 is an open-head orbital weld head designed for precision TIG welding of tubes and pipe assemblies. The open-head design provides access for TIG torches on assemblies where closed heads cannot be used. Rental options and multimedia resources are available.

Product details
The SATO-220 supports two-axis torch adjustment and precise axial electrode alignment via a starwheel. A mark-free roller tracking system maintains constant arc voltage without scratching the tube. The head is compatible with water/liquid cooling and intended for industrial pipe fabrication across a range of diameters.

Key features

• Two-axis torch adjustment for flexible torch positioning.
• Starwheel for accurate axial alignment of the electrode.
• Remote control for start/stop and electrode rotation.
• Mark-free roller tracking to preserve tube surface and ensure stable arc voltage.
• Water/liquid cooling compatibility for continuous operation.
• Available for rental; demonstration videos and technical downloads provided on request.

Technical specifications

• Model: SATO-220
• Type: Open-head orbital weld head for TIG welding
• Tube diameter range: Ø 38–220 mm (1.5–8.625")
• Cooling: Water / liquid
• Applications: Orbital TIG welding, industrial pipe fabrication, assemblies with restricted access
• Availability: Rental option indicated

Accessories & support

• Typical accessories: follow rollers, torch-angle adjustment fixtures, remote control units, consumable electrodes and spares.
• Documentation: technical datasheets, user manuals and demo video available via product page or on request.
