Orbital welding head SATO-170 AVC/OSC

water-cooledTIGprecision metal joining

Overview

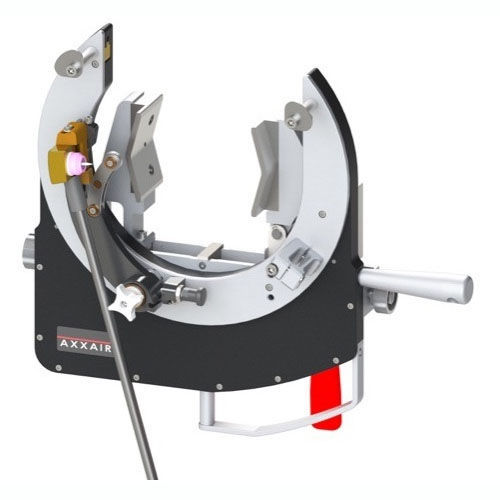

The SATO-170 AVC/OSC open-head orbital TIG weld head is designed for welding large-diameter tubes with outer diameters from 1 to 6.625" (25–170 mm). Intended for heavy industrial environments such as refineries, power plants and large process piping where weld repeatability and controlled results are required. The unit supports a wide range of materials including high-alloy steels and exotic metals.

Key functions

• TUBE OD RANGE: 1 – 6.625" / 25 – 170 mm
• COOLING: Water-cooled or liquid-cooled torch
• FUNCTION: Orbital TIG welding with AVC (arc voltage control) and OSC (oscillation)

Performance and design
Integrated AVC maintains a constant electrode-to-tube distance by automatically regulating arc length and voltage. Motorized OSC provides axial electrode sweep ±10 mm to distribute heat evenly and support multi-pass, thick-wall welding. Liquid-cooled 200 A capacity with 100% duty cycle enables continuous operation in shop or field conditions. Compact rotation sweep and a fast, secure clamping system reduce setup time and improve access in restricted areas. Compatible with SAXX power sources.

Product Advantages

• Designed for orbital TIG welding on tube diameters from 25 to 170 mm
• Automatic arc length and voltage control (AVC)
• Oscillation (OSC) for consistent multi-pass welds
• Suitable for wall thicknesses up to 12.7 mm
• 200 A liquid-cooled system for continuous-duty operation
• Motorized electrode movement for improved weld consistency and precision
• Small rotation sweep for access in tight or obstructed areas
• Fast, secure clamping reduces setup time
• Durable construction for harsh industrial environments
• Compatibility with SAXX power sources

Technical features (liquid cooled)
Description: SATO-170 with AVC/OSC system
Motor: STRAIGHT MOTOR / ANGLED MOTOR
Part No.: SATO-170E51 / SATO-170E52
Diameter range: 1 – 6.625" / 25 – 170 mm
100% duty cycle: 200 A
Electrode diameter: 1/16" or 3/32" / 1.6 or 2.4 mm
Cooling system: Yes (water/liquid-cooled torch)
Max operating temperature: 40 °C / 104 °F
Unit weight: 26.5 lbs / 12.7 kg

Additional details
Motorized axial sweep (OSC) provides ±10 mm (0.39") electrode axial movement to enable multi-pass welding while AVC maintains constant electrode-to-tube distance. Adjustable handle and motorized electrode movement simplify setup and improve weld repeatability in field and workshop conditions.

Technical specifications

• Model: SATO-170 AVC/OSC
• Part numbers: SATO-170E51 (straight motor), SATO-170E52 (angled motor)
• Tube OD range: 25 – 170 mm (1 – 6.625")
• Weld type: Orbital TIG (AVC and OSC)
• Oscillation axial travel: ±10 mm (0.39")
• Current capacity: 200 A (liquid-cooled)
• Duty cycle: 100%
• Electrode diameters supported: 1/16" or 3/32" (1.6 or 2.4 mm)
• Max target wall thickness: up to 12.7 mm (0.500")
• Cooling: water / liquid
• Max operating temperature: 40 °C / 104 °F
• Unit weight: 12.7 kg (26.5 lbs)
