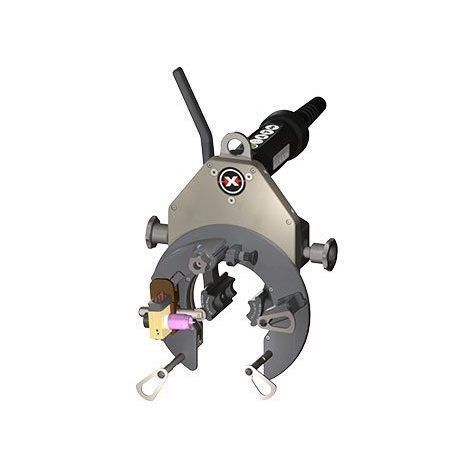

Water-cooled welding head OX-3000

orbitalTIGadaptable

Overview
The OX-3000 Open Orbital Weld Head delivers a compact, rigid and modular solution for orbital TIG welding of tubes. Engineered for both workshop and on-site use, it supports welding with or without filler wire and adapts to a wide range of materials and constrained working spaces.

Main data
TUBE OD RANGE: 0.75 – 3.0 in. (19 – 80 mm)
COOLING SYSTEM: Water-cooled
FUNCTION: Orbital TIG welding with or without filler metal

Product description
The OX-3000 is available in configurations for welding with or without filler wire. Its modular architecture facilitates integration of angle gear, clutch and external wire-feeder options, simplifying adaptation to different production workflows and motor configurations. The compact open-head design enables access to tight assemblies while maintaining consistent welding quality and repeatability.

Product Advantages

• Compact open orbital welding head – suited to tube outside diameters from 0.75–3.0 in. (19–80 mm).
• Wide operating range for diverse welding tasks.
• Water-cooled 8 m torch for extended thermal resistance and durability.
• Simplified setup – single-key accessory installation and tool-free adjustments during welding.
• Angle gear module and clutch module for flexible motor and torch-handling options.
• External wire feeder capability and wire guide for filler-wire processes.
• Ergonomic handle with integrated remote controls for start/stop, electrode rotation, gas and wire-feed adjustments.
• Delivered in a shockproof transport case with custom foam inserts for head, motor and angle gearbox module.

Key features

• Robust clamping system ensuring excellent stability during welding.
• Precise mechanical profile tracking for consistent weld quality.
• Tool-free knob system for quick axial, radial and angular electrode alignment.
• Tiltable torch for improved access and process flexibility.
• Modular design to integrate accessories and options as application needs evolve.

Technical specifications

• Brand: AXXAIR
• Model: OX-3000
• Tube outside diameter range: 0.75 – 3.0 in. (19 – 80 mm)
• Cooling: Water-cooled (water-cooled torch)
• Function: Orbital TIG welding with or without filler metal
• 100% duty cycle current: 200 Amps
• Electrode diameter: 1/16 or 3/32 in. (1.6 or 2.4 mm)
• Recommended maximum operating temperature: 104°F / 40°C
• Unit weight (including welding cable): 17.63 lb / 8.13 kg
• Welding torch length: 8 m (26 ft), water-cooled
• Includes angle gear module, clutch module, external wire-feeder capability and ergonomic handle with remote control
• Delivered in shockproof case with custom foam inserts
