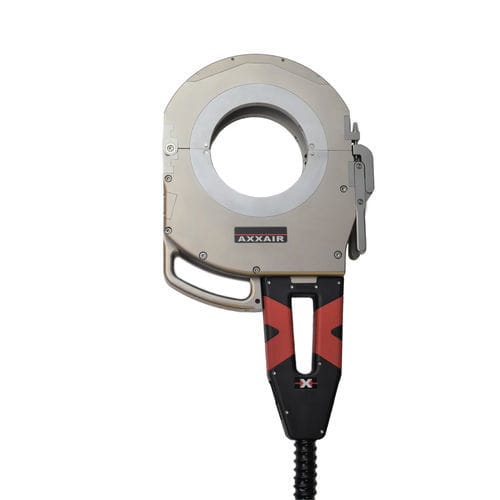

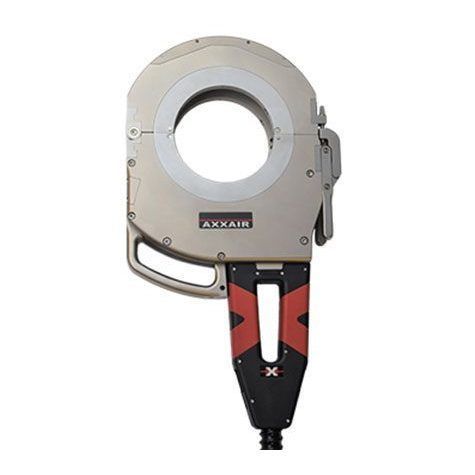

Water-cooled welding head SATFX-170

orbitalhigh-precisionclosed

Overview
The AXXAIR SATFX-170 closed orbital welding head is designed for automated, high-precision orbital welding of large-diameter and thick-walled tubes in pharmaceutical, chemical and food & beverage industries, where repeatability and process control are essential.

Main specifications (quick)

• Tube OD range: 1.5 – 6.625" / 38 – 170 mm
• Cooling: Water-cooled
• Cable length: 8 m (26 ft)
• Electrode diameter: 1/16" or 3/32" (1.6 or 2.4 mm)

Product advantages

• Grease-free operation compatible with clean-room and high-purity requirements
• Direct gas supply with optimized diffusion system (max flow 60 L/min) for stable arc and penetration control
• Integrated remote control (start/stop, gas, electrode rotation) with illuminated logo status indicator
• Two pivoting windows with Shade 10 welding glass for improved visibility and monitoring
• Adjustable clamping pressure system and standard aluminum clamping jaws screwed directly to the machine for secure positioning
• Integrated offset electrode adjustment for precise arc alignment
• Two ergonomic handles for handling and accurate positioning
• Easy maintenance and cleaning to reduce downtime
• 8 m cable for extended operational reach

Technical specifications

• Part No.: SATFX-170
• Description: Closed welding head with 8 m / 26 ft cable; Water-cooled
• Tube OD range: 1.5 – 6.625" / 38 – 170 mm
• Electrode diameter: 1/16" or 3/32" (1.6 or 2.4 mm)
• Weight with cable: 31.97 lbs / 14.5 kg
• Duty cycle at 100%: 120 A
• Maximum welding current: 150 A
• Operating temperature range: 0°C to +40°C (32°F to 104°F)
• Cooling: Water-cooled
• Gas system: Direct gas supply with optimized diffusion (max 60 L/min)
• Remote control: Integrated (start/stop, gas, electrode rotation) with status indicator
• Visibility: Two pivoting windows with Shade 10 welding glass
• Clamping: Adjustable clamping pressure system; standard aluminum clamping jaws screwed onto the machine
• Electrode alignment: Integrated offset adjustment
• Handles: Two ergonomic handles
• Cable length: 8 m (26–27 ft)
• Recommended power supplies: AXXAIR SAXX power supplies
