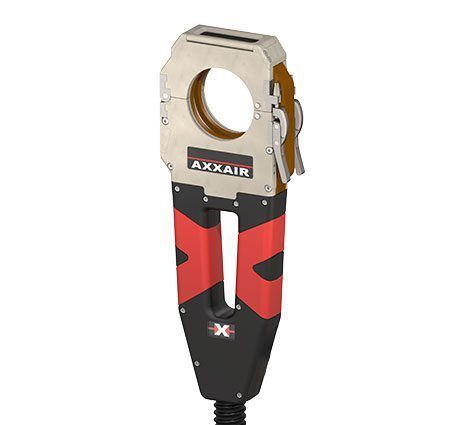

Water-cooled welding head AMX-52

orbitaladaptablehigh-precision

Overview
The AMX-52 closed orbital weld head delivers high-quality, repeatable orbital welds in confined spaces while providing the precision and performance of the SATFX range. Compatible with multiple industry-standard orbital welding power sources, it integrates flexibly into existing welding systems and production environments. Designed for fusion welding without filler metal, the AMX-52 is intended for thin-wall stainless steel tubing (tube OD 6–52 mm / 0.25–2") with wall thickness < 3 mm, and for oxidation-sensitive nickel and titanium alloys used in aerospace, semiconductor, pharmaceutical, chemical processing, food & beverage and other high-purity applications.

Key data
TUBE OD RANGE: 0.25 – 2" / 6 – 52 mm
COOLING SYSTEM: Water-cooled
CABLE LENGTH: 8 m (27 ft)

Product advantages

• Compatible with selected Magnatech, AMI and AXXAIR orbital welding power sources
• Narrow-profile design for access and operation in confined spaces
• Optimized gas diffusion for superior arc stability and consistent weld quality
• Grease-free operation suitable for cleanroom and high-purity environments
• Water-cooled construction for reliable, continuous operation
• Stainless steel jaws for quick, tool-free mounting
• Easy cleaning and maintenance to reduce downtime
• 8 m lead for extended operator mobility

Specifications
Part No.: AMX-52
Description: Closed welding head with 8 m / 26 ft lead. Water-cooled.
Tube diameter: 0.25 – 2" / 6 – 52 mm
Electrode diameter: 1/16" or 3/32" / 1.6 or 2.4 mm
Weight with cable: 18.96 lbs / 8.6 kg
Duty cycle at 100%: 100 A
Max welding current: 150 A
Operating temperature: 0 °C to +40 °C (32 °F / 104 °F)

Power source compatibility
AMI | AMI-205 with auto-calibration | YES | NO
AMI | AMI-207 with auto-calibration | YES | NO
AMI | AMI-217 with auto-calibration | YES | NO
AMI | AMI-307 | NO | YES: SAFS-ADAMI4
MAGNATECH | TUBEMASTER 514 | NO | YES: 1006365
AXXAIR | AXXAIR SAXX-201 | NO | YES: SAFS-ADAMI1
AXXAIR | AXXAIR SAXX-200 | NO | YES: SAFS-ADAMI1
AXXAIR | AXXAIR SAXX-210 | NO | YES: SAFS-ADAMI1
AXXAIR | AXXAIR SAXX-300 | NO | YES: SAFS-ADAMI1

Notes
Not compatible with AMI 227, 327, 415 and MAGNATECH Pipemaster 515/516.
