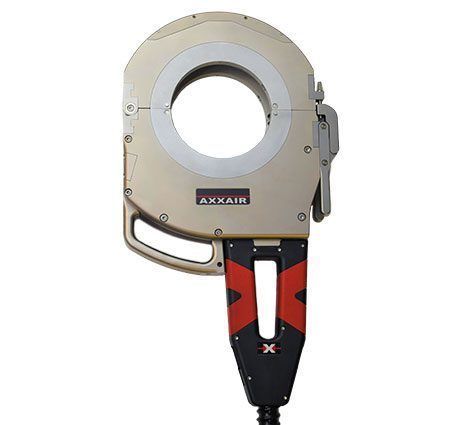

Water-cooled welding head AMX-170

orbitalfor tubesclosed

Overview
The AMX-170 closed orbital weld head is engineered for automated, repeatable orbital welding of large-diameter tubes. It supports fusion welding without filler metal and is compatible with multiple industry-standard orbital welding power sources for easy integration into existing production lines.

Key use & materials
Designed for fusion orbital welding of thin-wall stainless steel tubing (38–170 mm O.D.). Suitable for oxidation-sensitive nickel and titanium alloys. Typical applications include pharmaceutical, chemical processing, food & beverage, semiconductor, aerospace and other industrial sectors requiring high piping integrity and weld quality.

Specifications
Part No.: AMX-170
Description: Closed weld head with 8 m / 26 ft cable, water-cooled. Power source compatibility information provided.
Tube diameter: 1.5–6.625" / 38–170 mm O.D.
Electrode diameter: 1/16" or 3/32" (1.6 or 2.4 mm)
Weight with cable: 31.97 lbs / 14.5 kg
Duty cycle at 100%: 120 A
Max welding current: 150 A
Operating temperature: 0°C to +40°C (32°F to 104°F)
Power supplies: AXXAIR SAXX series (selected AMI units compatible)

Power source compatibility
BRAND | POWER SOURCE | directly compatible | with adapter
AMI | AMI-205 with auto-calibration | YES | NO
AMI | AMI-207 with auto-calibration | YES | NO
AMI | AMI-217 with auto-calibration | YES | NO
AMI | AMI-307 | NO | YES: SAFS-ADAMI4
AXXAIR | AXXAIR SAXX-201 | NO | YES: SAFS-ADAMI1
AXXAIR | AXXAIR SAXX-200 | NO | YES: SAFS-ADAMI1
AXXAIR | AXXAIR SAXX-210 | NO | YES: SAFS-ADAMI1
AXXAIR | AXXAIR SAXX-300 | NO | YES: SAFS-ADAMI1

Product Advantages

• Compatibility with selected AMI and AXXAIR orbital welding power sources
• Designed for large-diameter tubes up to 170 mm O.D.
• Grease-free operation suitable for cleanroom and high-purity environments
• Direct gas supply with optimized diffusion (max 60 L/min) for arc stability and penetration
• Standard aluminum screw-on clamping jaws for strength and repeatable positioning
• Water-cooled design for reliable performance during extended welding cycles
• Easy maintenance and cleaning to reduce downtime
• 8 m (27 ft) lead for extended operational reach

Additional Features

• Integrated offset electrode adjustment for precise arc alignment
• Two ergonomic handles for handling and accurate positioning
• Adjustable clamping pressure system for consistent clamp force
• Two pivoting windows with shade 10 welding glass

Technical specifications

• Model: AMX-170
• Tube O.D. range: 38–170 mm (1.5–6.625")
• Cooling: Water-cooled
• Electrode sizes: 1/16" (1.6 mm) and 3/32" (2.4 mm)
• Weight (with cable): 14.5 kg (31.97 lbs)
• Continuous duty rating: 120 A at 100%
• Maximum welding current: 150 A
• Operating temperature: 0°C to 40°C
• Lead length: 8 m (26–27 ft)
• Max gas flow (direct supply): 60 L/min
• Grease-free design for cleanroom/high-purity use
