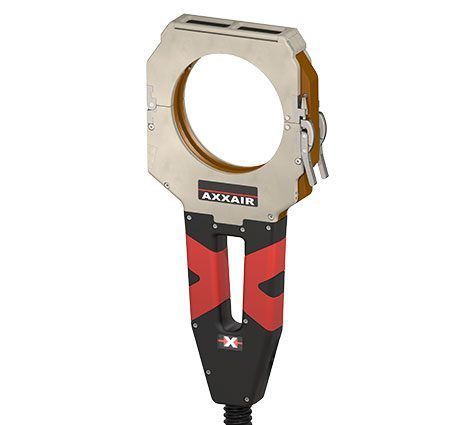

Water-cooled welding head AMX-115

orbitalTIGhigh-precision

Overview
The AMX-115 closed weld head provides repeatable orbital TIG welds in confined spaces with the precision and performance of the SATFX range. It is compatible with multiple industry-standard orbital welding power sources for flexible integration into existing systems and production lines.

Applications & Materials
Designed for fusion orbital welding without filler metal. Ideal for thin-wall stainless steel tubing with 0.5–4.5" / 12–115 mm O.D. and wall thickness typically under 3 mm. Also suitable for oxidation-sensitive nickel and titanium alloys. Typical industries: aerospace, semiconductor, pharmaceutical, chemical processing, food & beverage and other high‑purity environments.

Short technical highlights
TUBE OD RANGE: 0.5 – 4.5" / 12 – 115 mm
COOLING SYSTEM: Water-cooled
Wide pivoting viewing window with shade 10 welding lens

Product Advantages

• Compatible with selected Magnatech, AMI and AXXAIR orbital welding power sources
• Narrow-profile design for confined-space access
• Optimized gas diffusion for arc stability and consistent weld quality
• Grease-free operation suitable for cleanroom and high-purity standards
• Water-cooled design for reliable continuous operation
• Stainless steel jaws for quick, tool-free assembly (standard and wide clamping options)
• Easy cleaning and maintenance to reduce downtime
• 8 m (27 ft) lead length for extended operator mobility
• Cassettes (accessory) designed for welding in confined areas; allow positioning before securing the head body
• Adjustable clamping force system to ensure consistent machine clamping

Specifications (table)
Part No. - AMX-115
Description - Closed welding head with 8 m / 26 ft lead. Water-cooled. See power source compatibility below.
Tube diameter - 0.5 – 4.5" / 12 – 115 mm
Electrode diameter - 1/16" or 3/32" / 1.6 or 2.4 mm
Weight with cable - 20.72 lbs / 9.4 kg
Duty cycle at 100% - 100 A
Max welding current - 150 A
Operating temperature - 0°C to +40°C (32°F to 104°F)

Power source compatibility (table)
BRAND - POWER SOURCE - directly compatible - with adapter
AMI - AMI-205 with auto-calibration - YES - NO
AMI - AMI-207 with auto-calibration - YES - NO
AMI - AMI-217 with auto-calibration - YES - NO
AMI - AMI-307 - NO - YES: SAFS-ADAMI4
Magnatech - TUBEMASTER 514 - NO - YES: 1006365
AXXAIR - AXXAIR SAXX-201 - NO - YES: SAFS-ADAMI1
AXXAIR - AXXAIR SAXX-200 - NO - YES: SAFS-ADAMI1
AXXAIR - AXXAIR SAXX-210 - NO - YES: SAFS-ADAMI1
AXXAIR - AXXAIR SAXX-300 - NO - YES: SAFS-ADAMI1
Note: Not compatible with AMI 227, 327, 415 and MAGNATECH Pipemaster 515/516.

Downloads & Video
Product video available demonstrating the AMX closed orbital welding heads (video link on product page).

Characteristics / technical specifications

• Model: AMX-115
• Tube OD range: 12–115 mm (0.5–4.5")
• Suitable wall thickness: typically < 3 mm for thin-wall tubing
• Cooling: Water-cooled
• Electrodes supported: 1/16" (1.6 mm) or 3/32" (2.4 mm)
• Weight (with cable): 20.72 lbs / 9.4 kg
• Duty cycle at 100%: 100 A
• Maximum welding current: 150 A
• Operating temperature range: 0°C to +40°C (32°F to 104°F)
• Lead length: 8 m (26–27 ft)
• Design features: narrow profile for confined spaces, grease-free operation, stainless steel quick-fit jaws, adjustable clamping force, wide pivoting viewing window with shade 10 lens
• Intended industries: aerospace, semiconductor, pharmaceutical, chemical processing, food & beverage, high‑purity applications
