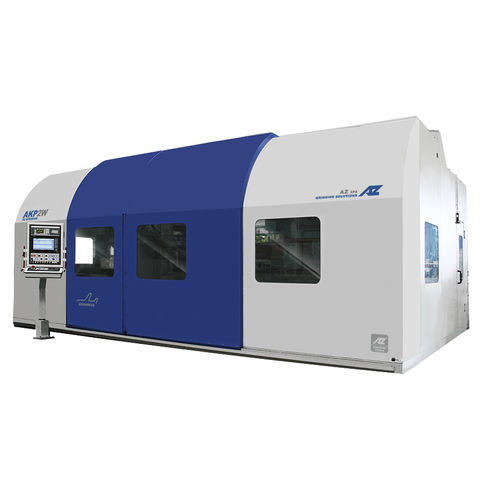

Landing gear grinding machine AKP

external cylindricalinternal cylindricalfor large workpieces

AKP machine is designed to grind external and internal diameters of Aircraft Landing Gear, thanks to the gap on the bed the whole part can completely rotate both vertically and horizontally. AZ is a supplier to the largest landing gear OEMs and MROs. MAX SWING ON THE GAP 3600 mm SWING OVER TABLE 1000-1200 mm WORKPIECE LENGTH 1250-5000 mm The operator can integrates OD and ID operations in one machine, this reduces machining overhaul times. Different machine configuration are possible depending on the application and customer requirements. The grinding process has some functions to give to the operator few automatic and safe working cycle: Electronically variable spindle speed, GAP control, Dressing control, Wheel Balancing control, In-process control, CRASH control and control of diameters from CNC. There are also the most innovative solutions for Silicon carbide, corundum, CBN and diamond grinding wheels allow grinding all aerospace materials, metals and their alloys including chromium, in particular those subjected to the most innovative systems for thermal spray techniques, such us H.V.O.F. (High Velocity Oxygen Fuel).
