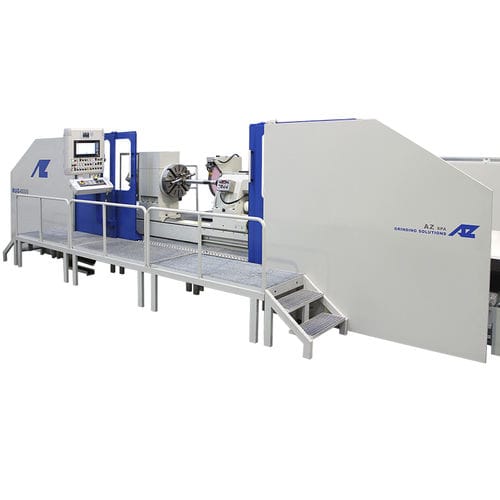

External cylindrical grinding machine RUG3000

internal cylindricalfor landing gearfor shaft

AZ Universal grinding machines range has been designed to fulfil the requirements of a wide range of applications that combine external, internal, face and taper grinding of components such as: transmission shafts, electric motor shaft, gas turbine shafts, railway shafts, machine tools shafts, landing gear components, etc. SPECIFICATIONS Height centers from 440 to 800 [mm] Swing over table from 785 to 1500 [mm] Max lenght of external grinding from 3000 to 14000 [mm] MANUFACTURING QUALITY The machine can have WHEELHEAD MOVE or TABLE MOVE Base made of Composital X and Z axis movement on linear guideways Headstock can swivel Tailstock with hydraulic constant pressure controlled by load cell Different clamping system and workpiece support GRINDING Wide range of wheelhead configurations: straight, angular, internal and “B”- axis Silicon carbide, corundum, CBN and diamond grinding wheels allow grinding of different materials and surface treatments including Chromium and HVOF TECHNOLOGY The machine can be supplied with different measurement systems according with customer requirements. APPLICATIONS AEROSPACE, RAILWAY, PRINTING INDUSTRY, COLD MILLS, AUTOMOTIVE, INDUSTRIAL VEHICLES, SPINDLES FOR MECHANICAL ENGINEERING APPLICATIONS, ELECTRICAL GENERATORS transmission shafts, electric motor shaft, gas turbine shafts, railway shafts, machine tools shafts, landing gear components Ideal machine for high demanding sectors - Wide range of wheelhead configurations - Different models with moving table or moving wheelhead - Partial or total guarding + GAP BED OPTION TO ALLOW FOR LARGE DIAMETER SWING COMPONENTS
