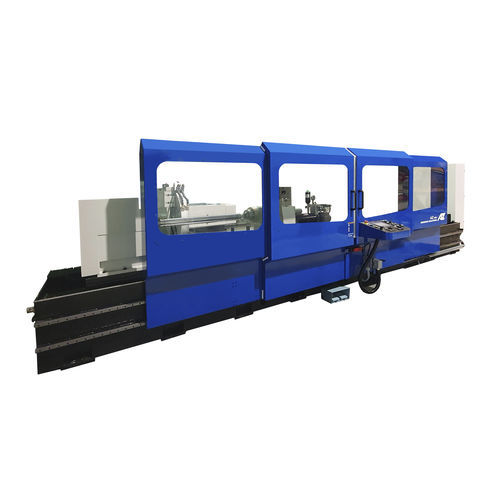

CNC grinding machine RUX seriescylindricalfor landing gearfor repairs
Add to favorites
Compare this product
Characteristics
- Type
- cylindrical
- Applications
- for shaft, for landing gear, for round bars, for rotors, for repairs
- Structure
- universal, with fixed table
- Control type
- CNC
- Number of axes
- 4-axis
- Features
- medium-sized
- Spindle speed
500 rpm, 1,000 rpm
(3,142 rad.min-1, 6,283 rad.min-1)- Power
4 kW, 7.5 kW
(5.44 hp, 10.2 hp)- Distance between centers
800 mm, 1,980 mm, 4,000 mm
(31 in, 78 in, 157 in)- Grinding wheel diameter
508 mm, 610 mm, 760 mm
(20 in, 24 in, 30 in)
Description
RUX is a CNC cylindrical grinding machine. The machine is designed with grinding wheel moves on base by recirculating ball systems. The workpiece is clamped by headstock fixed on the base and tailstock moving on table support. This machine configuration permits to reduce the overall machine dimensions compared to moving table configuration. Base is in composite material specifically designed to obtain the best result between structural deformations and vibration dumping.
The machine is equipped with CNC control system with these features:
Plunge grinding, with integrated face machining capability
Traverse grinding
Dressing program (face-radius-chamfer-taper)
Correction of the workpiece taper in the traverse cycle
Integrated remote assistance module
Max diameter admitted 400-540-550 [mm]
Centers height 225-270-300 [mm]
