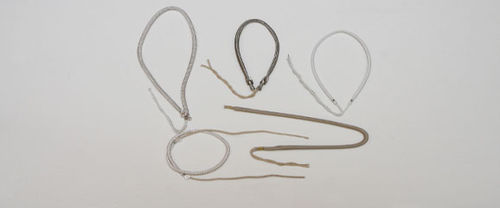

Fiberglass-sheathed heating cable GH16

Fiberglass-sheathed heating cable - GH16 - Backer Hotwatt Inc
Fiberglass-sheathed heating cable - GH16 - Backer Hotwatt Inc
Fiberglass-sheathed heating cable - GH16 - Backer Hotwatt Inc - image - 2
Add to favorites
Compare this product

Characteristics

Sheathing / insulating material
fiberglass-sheathed
Working temperature

1,200 °F
(648.9 °C)

Description

•The Backer Hotwatt High Temperature Glasrope Heater is similar to the Standard Single Glasrope Heater in construction except the woven fiberglass braid is of special design to withstand higher temperatures. •Nominal diameter is .165″. •Lengths to 300″. •Maximum operating temperature is 1200° F. •Made in U.S.A. Construction •Flexible woven high temperature fiberglass braid. •Premium grade resistance wire element. •Braid retainer. •Fiberglass insulated leads. Wattage Maximum wattage is computed at 7 watts per linear inch. How To Order Specify: GH16-followed by length, wattage, voltage, lead length, and special features if required. Example: GH16-80/400W/120V/SF1-10.

Catalogs
