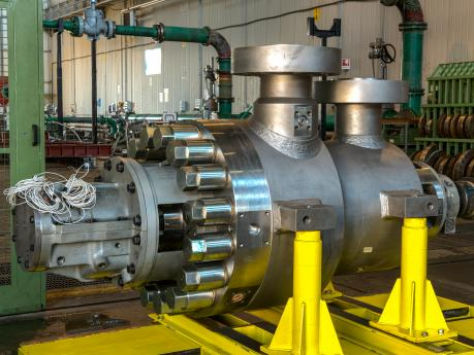

Water pump BB5 DDHFM
electricturbinestationary

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
electric
Technology
turbine
Mobility
stationary
Domain
industrial
Applications
discharge, process, feed, booster, injection, recovery, boiler
Other characteristics
radial, seal
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 1,500 m³/h
(52,972.00008 ft³/h)

Head

Min.: 0 m
(0'00" )

Max.: 6,000 m
(19685'00" )

Power

Min.: 0 kW
(0 hp)

Max.: 12,000 kW
(16,315.45 hp)

Fluid temperature

Min.: -32 °C
(-25.6 °F)

Max.: 180 °C
(356 °F)

Description

Optimized hydraulic design for high efficiency in onshore and offshore water-injection applications Benefits Low vibration levels contribute to high reliability Optimized hydraulic design delivers high efficiency Assembly design ensures easy maintenance Features Continuously bladed diffuser-return channel maximizes flow range and efficiency Precision-casted diffusers guarantee high conformity and low radial loads on the rotor Discharge channel minimizes hydraulic losses, and inner bundle rollers avoid seal damage during maintenance Applications Onshore and offshore water injection Boiler feedwater, pipeline, amine Energy recovery, and CO₂ injection The DDHFM multistage pump design improves on our DDM pumps, including additional features for reliable water injection, and direct connection with a gas turbine running at System optimization During the selection process, we can optimize the complete system according to customer objectives for CAPEX, OPEX, and operability. We also select both the main and booster pumps at the same time to ensure the best combination.
